Hitch External Switches (If Equipped)

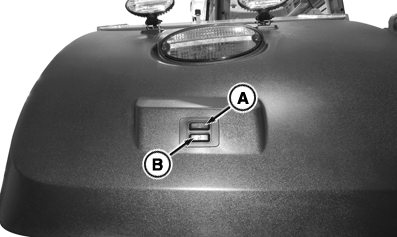

RXA0141846-UN-03JUN14

Rear Hitch External Raise/Lower Switches

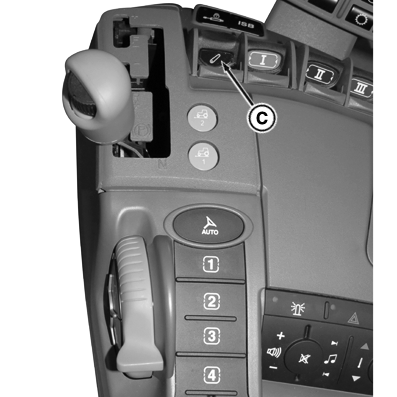

RXA0139501-UN-24FEB14

CommandARM™ Hitch Switch

A - Hitch Raise Switch

B - Hitch Lower Switch

C - CommandARM™ Hitch Control Lever

Rear hitch external raise/lower switches are located on left rear fender.

NOTE: Hitch moves at slower speed when using external raise/lower switches.

CommandARM™ hitch control lever (C) cannot be used simultaneously with external raise/lower switches.

Push on top external switch (A) to raise hitch.

Push on bottom external switch (B) to lower hitch.
