Engine Brake — 15 L Engine (If Equipped)

RXA0133711-UN-16JUL13

Engine Shortcut Button on Navigation Bar

RXA0147944-UN-13APR15

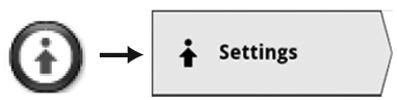

Advanced Settings Icon → Settings Tab

RXA0148264-UN-27MAY15

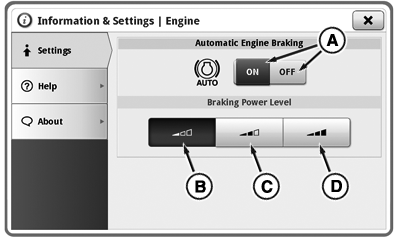

Engine Information & Settings Page (Early Version)

RXA0149830-UN-28AUG15

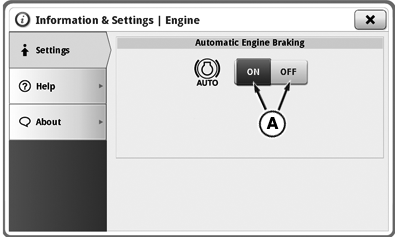

Engine Information & Settings Page (Late Version)

A - ON/OFF Toggle

B - Low

C - Medium

D - High

IMPORTANT: Engine braking system assists vehicle’s service brakes in slowing down vehicle. Never use only engine brakes to stop vehicle.

Do not exceed governed engine speed when operating engine brakes. Engine damage can occur.

Tractors with 15 L engines may be equipped with an engine braking system. Engine brakes reduce tractor speed, during transport, by the use of engine compression, allowing for less wear on service brakes.

1. Select Engine Shortcut button on Navigation Bar.

2. Select Advanced Setting icon.

3. Select Settings tab.

4. Turn engine brake ON using ON/OFF toggle (A)

Use engine brake when traveling, under load, on level surfaces. Three user selectable braking power level settings can be used depending on load weight, speed and road conditions:

• Low (B): 33-percent engine braking power. Use when transporting light loads.
• Medium (C): 67-percent engine braking power. Use when transporting light/medium loads
• High (D): 100-percent engine braking power. Use when transporting heavy loads.
