Rotary Beacon Light

RXA0142357
RXA0142357-UN-10JUN14

RXA0109218
RXA0109218-UN-29JUL10

RXA0100494
RXA0100494-UN-11FEB09

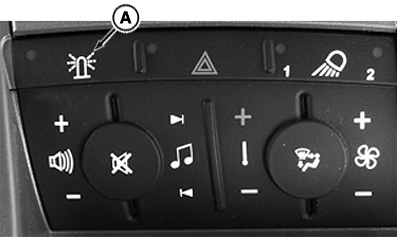

A - Rotary Beacon Switch

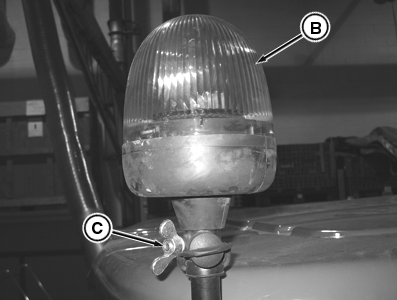

B - Rotary Beacon Light

C - Nut

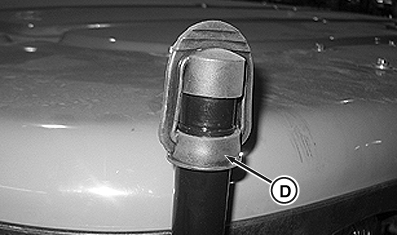

D - Protective Cap

NOTE: If Rotary Beacon light is not installed and Rotary Beacon switch is activated, a Rotary Beacon Diagnostic Trouble Code (DTC) will be generated.

Push Rotary Beacon switch (A) to activate Rotary Beacon light (B).

To protect Rotary Beacon light when not to be used for extended periods of time:

  1. Loosen nut (C) and remove light assembly.
  2. Install rubber protective cap (D) on connector.

LT63082,0000145-19-20160223
