Information Indicators

RXA0109847-UN-20AUG10

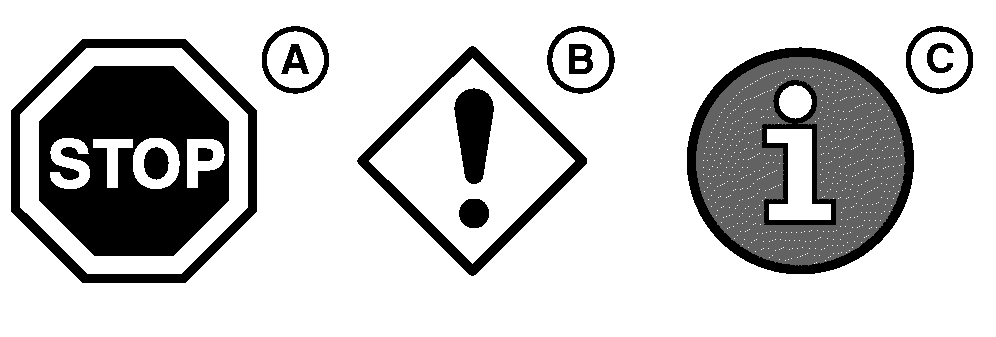

Information Indicators on Corner Post Display

A - STOP Indicator

B - Service Alert Indicator

C - Information Indicator

STOP, Service Alert and Information Indicators are accompanied by informative message, diagnostic trouble code, and/or fault description shown on CommandCenter™. For description of indicators and codes, see STOP, Service Alert and Information Indicators in Diagnostic Trouble Codes section of this Operator’s Manual.

STOP Indicator (A): Light flashes and alarm sounds continuously.

Service Alert Indicator (B): Light flashes and alarm sounds five times indicating performance or operational problem is detected that needs to be resolved as soon as possible.

Information Indicator (C): Light illuminates continuously and alarm sounds for two seconds, indicating possible fault condition.
