Laser Scraper—for Scrapers Equipped with Scraper Control Unit

NOTE: Used primarily in areas requiring automated laser guidance system for scraper applications.

RXA0133709-UN-16JUL13

SCV Shortcut Button on Navigation Bar

RXA0128092-UN-10SEP12

Menu Button → Tractor Settings Tab → SCV Button

RXA0135523-UN-16SEP13

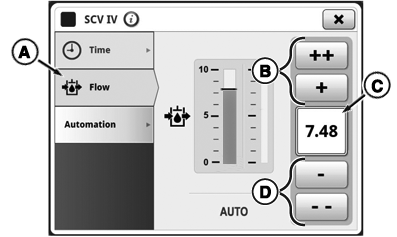

SCV Settings Page

RXA0135247-UN-16SEP13

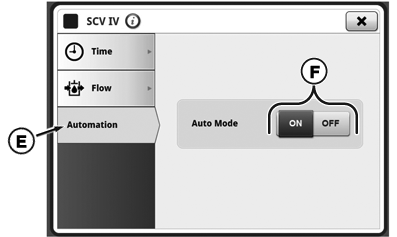

Automation Toggle

RXA0131233-UN-09MAY13

Navigation Bar

A - Detent Flow Tab

B - Increase Flow

C - Input Box

D - Decrease Flow

E - Automation Tab

F - ON/OFF Toggle Button

G - Adjusting Dial

Press SCV shortcut button on Navigation Bar or follow alternative path:

1. Connect tractor to implement.

2. Select Menu Button.

3. Select Tractor Settings tab.

4. Select SCV Button.

5. Select Detent Flow tab (A).

6. To increase flow press button (B) or to decrease press button (D). Also turning adjusting wheel (G) can be used to obtain desired flow setting.

To activate the Automation feature, press Automation tab (E) then ON or OFF toggle button (F).

In Auto Mode, the scraper’s blade position is initiated by moving SCV levers into extend or retract detent positions.

Any movement of the SCV control lever after automation is started will cancel the automation. Moving a SCV control back into detent will reactivate the automation.

RXA0137719-UN-11DEC13

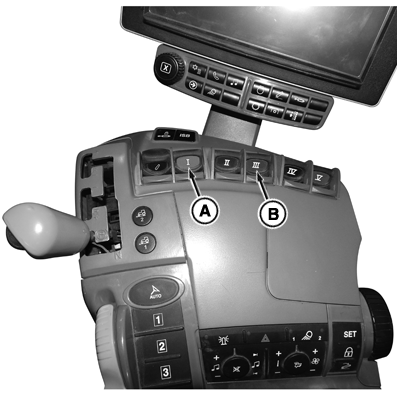

SCV Control Levers

A - SCV I Control Lever

B - SCV III Control Lever

CAUTION: Avoid personal injury or death. Moving scraper control unit, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valves (SCV I and/or SCV III) are used to electronically control raising, lowering, and setting of implement depth, without leaving the cab.

Control lever (A) is used to manually control SCV I and activate an automatic scraper control system.

Control lever (B) is used to manually control SCV III and activate a second automatic scraper control system.
