Check Engine Oil—15 L Engine

IMPORTANT: Do not operate engine with oil level below cross-hatched area on dipstick.

NOTE: Most reliable oil level is determined prior to starting engine, after tractor has been parked on level ground for several hours or overnight.

RXA0141821-UN-02JUN14

RXA0141822-UN-02JUN14

Engine Oil Dipstick

RXA0141823-UN-02JUN14

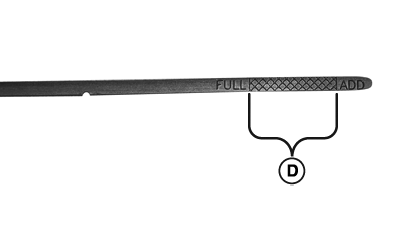

Dipstick Cross Hatch

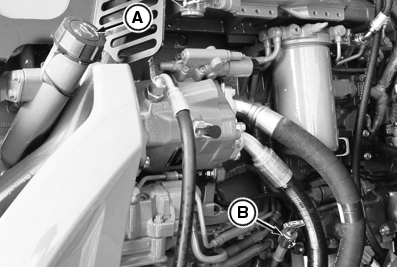

A - Fill Cap/Tube

B - Dipstick Location

C - Dipstick

D - Cross-Hatched Area

NOTE: Dipstick is a different location (B) than fill tube.

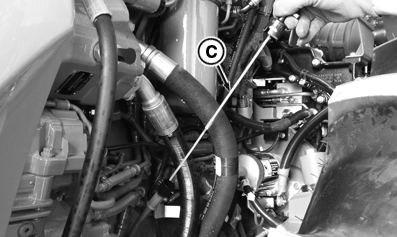

Remove dipstick (C) and check oil level with tractor on level ground before starting tractor. Oil level anywhere within cross-hatched area on dipstick (D) is considered FULL. If oil is below cross-hatched area on dipstick, add oil.

If oil is required, remove fill cap (A) and add oil in to fill tube. See Diesel Engine Oil - Interim Tier IV, Final Tier IV, Stage III B, and Stage IV or Diesel Engine Oil - Tier II and Stage II in the Fuels, Lubricants and Coolant Section of this Operator’s Manual.

Place dipstick back in and tighten fill cap securely.
