SCV Control Lever—Float Position

RXA0141595
RXA0141595-UN-14MAY14

SCV (Float)

RXA0135073
RXA0135073-UN-20AUG13

SCV Control Lever Float Position

RXA0131855
RXA0131855-UN-19AUG13

SCV Float and Lockout

A - Float position (Push Down)

B - Float Position

C - Disabled Float Function and SCV Lockout

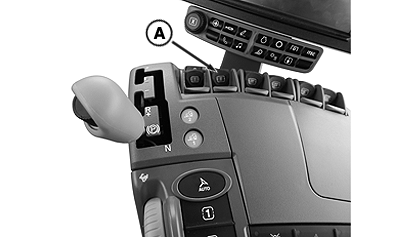

Push SCV control lever (A) all the way forward to lock the lever in float position. Lever and SCV will remain in float position until lever is manually returned to neutral. Cylinder is free to extend or retract, letting implement follow ground contour.

NOTE: Time setting is ignored in Float position.

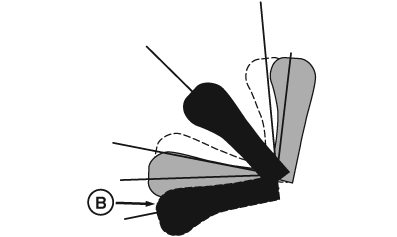

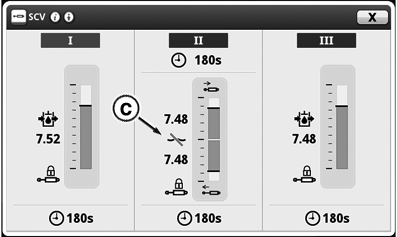

If lever is in float position (B) at engine start up, float function will be disabled (C) until lever is cycled to neutral.

Cycle cylinder fully in both directions after being used in the float position to insure cylinder is filled with oil.

RD47322,000042A-19-20140514
