Six Position SCV Control Levers

RXA0137718-UN-14MAY14

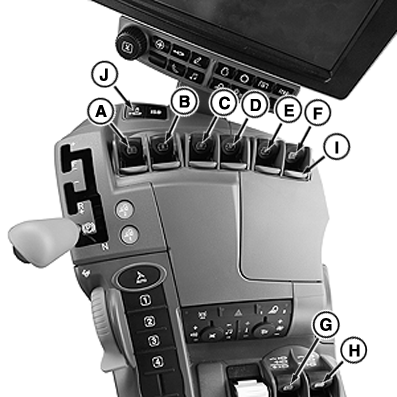

CommandARM™

RXA0141594-UN-14MAY14

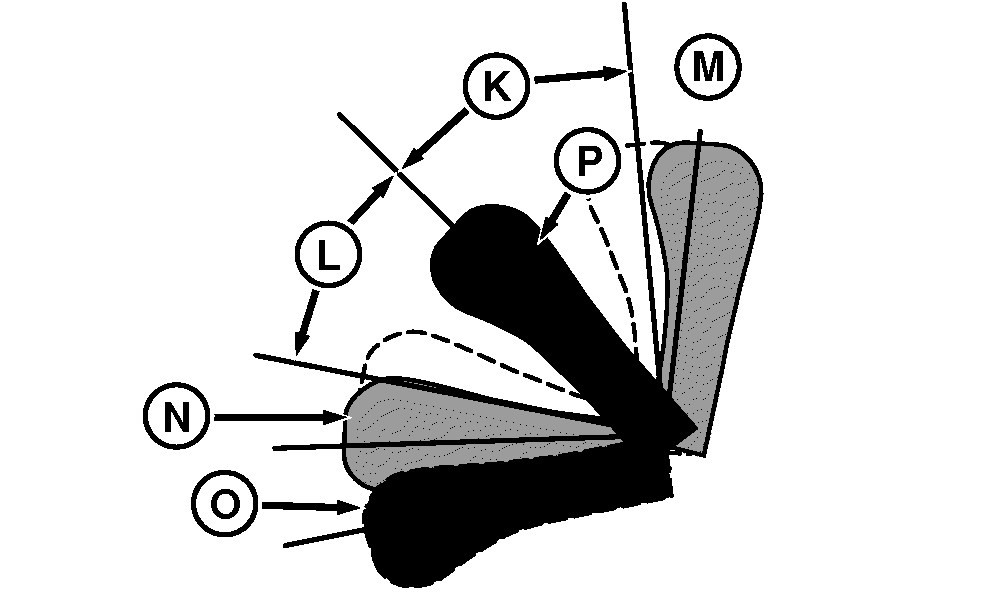

Armrest Controls — Six Position SCV Levers

A - SCV I

B - SCV II

C - SCV III

D - SCV IV

E - SCV V

F - SCV VI

G - SCV VII

H - SCV VIII

I - SCV Cover Lever

J - SCV Control Lever Lock

K - Extend Range

L - Retract Range

M - Extend Detent Position

N - Retract Detent Position

O - Float

P - SCV Lever (Neutral Position)

CAUTION: To avoid personal injury, ensure that hoses are not reversed. If hoses are reversed, cylinder extends when it should retract.

Prevent possible personal injury. Shut off engine, move SCV control levers to neutral position and press SCV control lever lock (J) before attaching implements to prevent unintentional implement movement.

NOTE: CommandARM™ configuration can vary depending on options.

• SCV Control Lever Lock (J): Locks out control inputs (On SCV levers (A) through (H) only).
• Neutral (P): Lever returns to center position when released, except in float position.
• Extend (K): (Rearward between Neutral and Extend Detent positions) Variable flow to extend cylinder, proportional to lever movement and flow settings; flow stops when released.
• Retract (L): (Forward between Neutral and Retract Detent positions) Variable flow to retract cylinder, proportional to lever movement and flow settings; flow stops when released.
• Extend Detent Position (M): (Rearward to "click" position) Timed flow to extend cylinder, based on detent time setting and at a rate set by flow rate control (see Adjusting Timed Detent and Adjusting SCV Flow Rate in this section of this Operator’s Manual). Returns to neutral when released.
• Retract Detent Position (N): (Forward to "click" position) Timed flow to retract cylinder, based on detent time setting and rate set by flow rate control (see Adjusting Timed Detent and Adjusting SCV Flow Rate in this section of this Operator’s Manual). Returns to neutral when released.
• NOTE: To relieve hydraulic pressure in implement, move SCV control lever to float position (O), while engine is running.
  Float can be used to allow hydraulic motors to coast when shutting down implement.

  Float (O): (Down into locked position) Valves open to sump to allow cylinder to freely extend or retract. Allows implement to follow ground contour. Pull up and out of locked position to disengage.

Push SCV lever cover (I) forward when SCV is not in use.
