SCV Control Lever—Extend and Extend Detent Position

Extend Position

RXA0137720-UN-14MAY14

SCV Control Lever Extend and Extend Detent

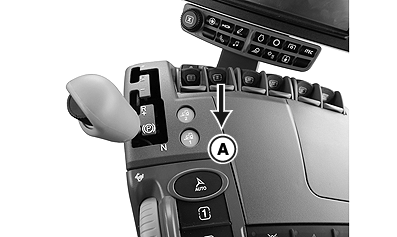

A - Extend Position (Pull Rearward)

Pull lever (A) rearward of neutral. Cylinder extends at a rate that varies with how far rearward the lever is pulled.

Pull lever slightly rearward to extend the remote cylinder slowly.

Pull lever rearward against the first detent notch to extend the remote cylinder at maximum rate. (See Adjusting SCV Flow Rate in this section) Lever returns to neutral and flow stops when released.

NOTE: Time Setting is ignored in the retract position.

Extend Detent Position

NOTE: Detent positions are ignored at start up until lever is cycled to NEUTRAL.

Pull lever (A) rearward to “click” detent position and release. Lever returns to neutral position, but flow continues at maximum rate. (See Adjusting SCV Flow Rate and Adjusting Timed Detent in this section.)

Flow timing begins when the lever returns to center after being in the detent position for less than 0.8 seconds. SCV flow time should be adjusted so cylinder is fully extended when time has elapsed.

Detent can be canceled by moving SCV lever slightly forward or rearward from neutral after lever has returned to neutral or by holding lever in extend position for more than 0.8 seconds after lever has entered detent position.
