SCV Control Lever—Retract and Retract Detent Position

Retract Position

RXA0137721-UN-14MAY14

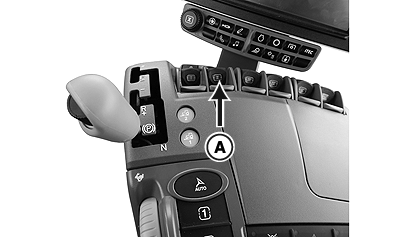

SCV Control Lever Retract and Retract Detent

A - Retract Position (Push Forward)

NOTE: Time setting is ignored in retract position.

Push lever (A) forward of neutral. Cylinder retracts at a rate that varies with how far forward the lever is pushed.

Push the lever slightly forward to retract the remote cylinder slowly.

Push the lever forward against the first detent notch to retract the remote cylinder at maximum rate. (See Adjusting SCV Flow Rate in this section) Lever returns to neutral and flow stops when released.

Retract Detent Position

NOTE: Detent positions are ignored at start up until lever is cycled to NEUTRAL.

Push lever (A) forward to "click" detent position and release. Lever returns to neutral position, but flow continues at maximum rate if detent time setting is non-zero. (See Adjusting SCV Flow Rate and Adjusting Timed Detent in this section.)

Flow timing begins when the lever returns to center after being in the detent position for less than 0.8 seconds. SCV flow time should be adjusted so cylinder is fully retracted when time has elapsed.

Detent can be canceled by moving SCV lever slightly forward or rearward from neutral after lever has returned to neutral or by holding lever in retract position for more than 0.8 seconds after lever entered detent position.
