Drain, Flush and Refill Cooling System—9.0 L Engine

IMPORTANT:

TS281
TS281-UN-15APR13

Safety—Explosive Release of Fluids

RXA0141883
RXA0141883-UN-04JUN14

Turn Key To Run Position

RXA0141884
RXA0141884-UN-06OCT14

Cab Temperature Setting To Highest Setting

RXA0141887
RXA0141887-UN-09JUN14

Remove De-aeration Cap

A - Run Position

B - Cab Temperature Setting

C - De-aeration Cap

Thermostat, thermostat gasket, and de-aeration tank cap should be replaced whenever system is flushed.

INITIAL change interval is 6 years or 6000 hours, provided cooling system is topped off using only John Deere Cool-Gard II™ and premix and coolant is tested at recommended intervals. After initial service, the SCHEDULED interval (2 years or 2000 hours) can be extended up to 6 years or 6000 hours depending on coolant used and if coolant is tested at recommended intervals. Follow recommendations in ”Drain Intervals for Diesel Engine Coolant” in Fuels, Lubricants and Coolant section of this manual.

NOTE: When service is performed on cooling system, make sure to check coolant daily for the next three days of operation. The most effective way to check coolant level is when tractor engine is cool. If coolant is low, fill de-aeration tank to mark on tank.

CAUTION: Explosive release of fluids from pressurized cooling system can cause serious burns.

Shut off engine. Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

  1. Park tractor, turn key switch to OFF and allow radiator to cool.

    NOTE: Throughout the draining, flushing and filling procedure, set cab temperature to highest setting (B) and leave set to the highest setting to ensure that fluids are drained from heating/Air conditioning unit. If either cab temperature setting (B) is not set to highest setting or key switch is not turned to Run, system will not completely drain.

    See your John Deere™ dealer for recommendations on cleaning solutions.

  2. Turn key to RUN Position (A), then set cab temperature setting (B) to highest setting.

  3. Open hood and remove de-aeration tank cap (C).

  4. Place catch pan under radiator drain valve (A).

    RXA0141885
    RXA0141885-UN-04JUN14

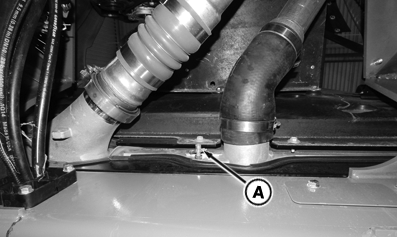

    Open Radiator Drain Valve

    RXA0141886
    RXA0141886-UN-04JUN14

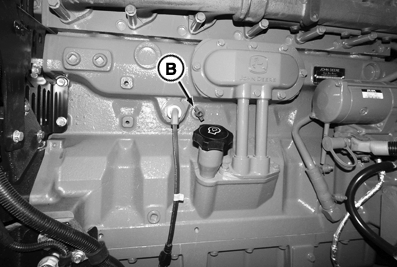

    Open Engine Block Valve And Drain

    A - Radiator Drain Valve

    B - Engine Block Drain Valve


  5. Open radiator drain valve (A) and drain coolant into catch pan.

  6. Place catch pan under engine drain valve.

  7. Open engine block drain valve (B) and drain coolant into catch pan.

  8. Allow radiator and engine to drain.

    RXA0141888
    RXA0141888-UN-04JUN14

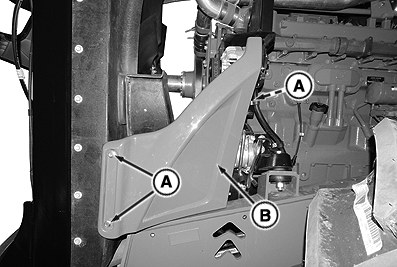

    Remove Left Side Panel

    A - Cap Screws

    B - Left Side Panel.


  9. Remove cap screws (A) and left front side panel (B).

  10. Loosen hose clamp (A) and slide hose (B) off of thermostat cover.

    TS281
    TS281-UN-15APR13

    Safety—Explosive Release of Fluids

    RXA0142076
    RXA0142076-UN-03JUN14

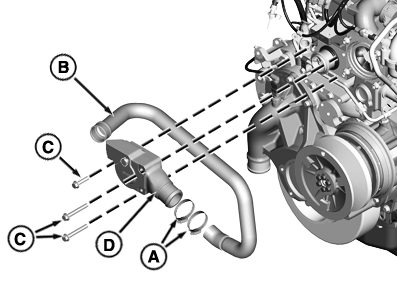

    Loosen Hose Clamps And Slide Hose Off Thermostat Cover

    RXA0142077
    RXA0142077-UN-03JUN14

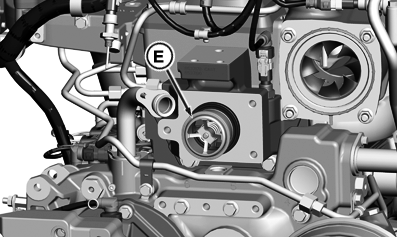

    Remove Thermostat

    A - Hose Clamp

    B - Hose

    C - Cap Screws

    D - Thermostat Cover

    E - Thermostat


  11. Remove three cap screws (C) and thermostat cover (D).

  12. Remove old thermostat (E) and clean sealing area.

    NOTE: During draining, filling, and flushing, coolant system will not have thermostat installed.

  13. Install new gasket and cover. Tighten cap screws to specifications.

    ItemMeasurementSpecification
    Thermostat Cover Cap ScrewsTorque48 N·m (35 lb·ft)

  14. Replace previously removed radiator hose and clamp, diverter and side panel.

  15. Close engine drain valve, and radiator drain valve.

  16. Dispose of old coolant in accordance with local laws and ordinances.

    IMPORTANT: Never pour cold water or coolant into hot engine.

    NOTE: See your John Deere™ dealer for recommendations on cleaning solutions.

  17. Fill high pressure coolant system at de-aeration tank with cooling system cleaning solution.

  18. Install de-aeration cap and close hood.

    IMPORTANT: Make sure side panel is installed and hood is closed before starting engine.

  19. Start engine and run at a minimum of 1500 rpm for 15 minutes.

  20. Shut off engine and allow cleaning solution to cool.

  21. Make sure temperature knob is turned to highest setting, then turn key switch to Run position.

    CAUTION: Explosive release of fluids from pressurized cooling system can cause serious burns.

    Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

  22. Open hood, remove de-aeration cap, put drain pans in place, then open radiator and engine drain valves.

  23. Allow cooling system to completely drain.

  24. Close engine drain valve, and radiator drain valve.

    IMPORTANT: Never pour cold water or coolant into hot engine.

    TS281
    TS281-UN-15APR13


  25. Dispose of cleaning solution in accordance with local laws and ordinances.

  26. Fill high pressure coolant system at de-aeration tank with clean water.

  27. Install de-aeration cap and close hood.

  28. Start engine and run at a minimum of 1500 rpm for 15 minutes.

  29. Shut off engine and allow water to cool.

  30. Make sure temperature knob is turned to highest setting. then turn key to Run.

    CAUTION: Explosive release of fluids from pressurized cooling system can cause serious burns.

    Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

  31. Open hood, remove de-aeration cap, put drain pans in place, then open radiator and engine drain valves.

  32. Allow radiator to drain, then remove left side panel and diverter.

  33. Loosen clamp and slide hose back, remove three cap screws, thermostat cover, and gasket.

  34. Inspect sealing area to ensure it is clean.

  35. Apply light coat of RTV silicone sealant to new gasket.

  36. Install new thermostat, new gasket and cover. Tighten cap screws to specifications.

    ItemMeasurementSpecification
    Thermostat Cover Cap ScrewsTorque73 N·m (54 lb·ft)

  37. Replace previously removed hose, clamps, diverter and left front side panel.

  38. Close engine drain valve and radiator drain valve.

  39. Dispose of drain clean water in accordance with local laws and ordinances.

  40. Fill high pressure coolant system at de-aeration tank with new coolant solution.

    Cooling System Capacity:



    Final Tier IV/Stage IV PowerTech™ PSS1.............. 50 L (13.2 gal)

    Tier 2/EU Stage II 2.............. 43.5 L (11.4 gal)

    CAUTION: Make sure side panel is installed and hood is closed before starting engine.

  41. Install de-aeration cap, install front side panels, close hood, start engine and run for a minimum of 1500 rpm for 15 minutes.

    NOTE: Coolant may seep out of the de-aeration tank overflow vent as air is purged from the coolant system.

    Level may change when tractor is running or during the next few cycles.

    It is highly recommended the cooling system is checked for leaks after draining, flushing and refilling to ensure tractor performance. Consult your John Deere™ Dealer for procedure and appropriate tools.

  42. Monitor coolant level for next several hours/overnight. Refill De-aeration tank as required.

John Deere is a trademark of Deere & Company
PowerTech is a trademark of Deere & Company
1 Engines are identified by letter “U” in the engine serial number. An example is RG6135UXXXXXX
2 Engines are identified by letter “G” in the engine serial number. An example is RG6135UXXXXXX

RD47322,00004CB-19-20160902
