Set Start Gears

NOTE: Operators have the option of setting up to two forward start gears and one reverse gear with e18™ the transmission.

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0130326-UN-11JAN13

Advanced Settings Icon → Settings Tab

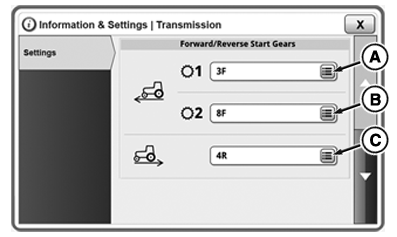

RXA0143042-UN-01JUL14

Forward and Reverse Start Gears

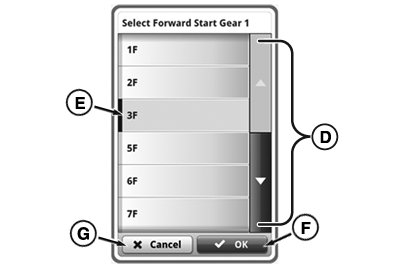

RXA0143039-UN-01JUL14

Forward Start Gear 1 Drop Down Overlay

A - Forward Start Gear 1 button

B - Forward Start Gear 2 button

C - Reverse Start Gear button

D - Forward Start Gear 1 Drop Down Overlay

E - Desired Gear

F - OK button

G - Cancel button

Press Transmission Shortcut Button on Navigation Bar.

1. Press Advanced Settings icon.

2. Press Settings tab.

3. Press Forward Start Gear 1 button (A). List of forward gears appears.

4. Scroll through list of gears (D).

5. Select desired gear (E) and press OK button (F) to finish selection or (G) to cancel.

Select Forward Start Gear 2

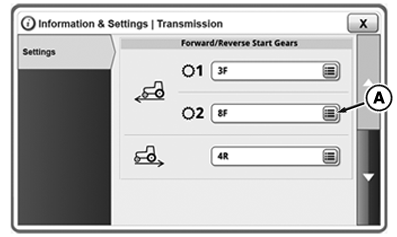

RXA0143043-UN-01JUL14

Setting Forward and Reverse Start Gears

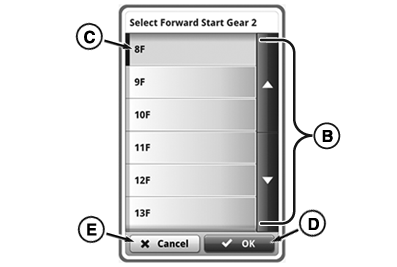

RXA0143040-UN-01JUL14

Forward Start Gear 2 Drop Down Overlay

A - Forward Start Gear 2 button

B - Forward Start Gear 2 Drop Down Overlay

C - Desired Gear

D - OK button

E - Cancel button

1. Press Forward Start Gear 2 button (A). List of forward gears appears.

2. Scroll through list of gears (B).

3. Select desired gear (C) and press OK button (D) to finish selection or (E) to cancel.

Select Reverse Start Gear

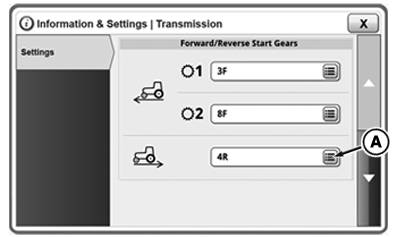

RXA0143044-UN-01JUL14

Selecting Forward and Reverse Start Gears

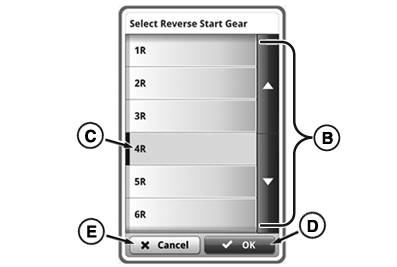

RXA0143041-UN-01JUL14

Reverse Start Drop Down Overlay

A - Reverse Start Gear button

B - Reverse Start Gear 2 Drop Down Overlay

C - Desired Gear

D - OK button

E - Cancel button

1. Press Reverse Start Gear 2 button (A). List of forward gears appears.

2. Scroll through list of gears (B).

3. Select desired gear (C) and press OK button (D) to finish selection or (E) to cancel.
