CommandCenter™ Transmission Main Page

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0143051-UN-26JUN14

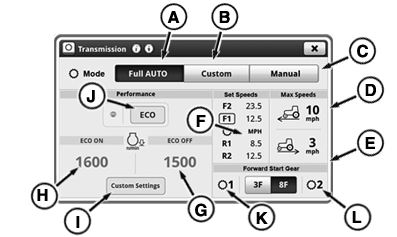

Transmission Main Page

A - Full AUTO Mode

B - Custom Mode

C - Manual Mode

D - Maximum Forward Speed Module

E - Maximum Reverse Speed Module

F - Set Speeds Module

G - ECO Engine Speed Off Module

H - ECO Engine Speed On Module

I - Custom Settings Button

J - ECO Level Button

K - Forward Start Gear 1

L - Forward Start Gear 2

• Full Auto Mode (A) — Automatically adjusts Fuel Economy Minimum Engine Speed, allowing tractor to use most fuel efficient engine speed under light load. This mode automatically responds to loads created by use of hitch or SCVs (load anticipation). During PTO use, top engine speed is automatically limited to provide appropriate PTO speed.
• Custom Mode (B)— Operator can choose Engine Speed Droop, Minimum Engine Speed, or Load Anticipation reactions.
• Manual Mode (C)— Operator can choose Engine Speed Droop, Minimum Engine Speed, or Load Anticipation reactions.

Press Transmission Shortcut Button on Navigation Bar.

Forward maximum speed (D) or reverse maximum speed (E) displays maximum forward or reverse speed limits. To change maximum speed, select appropriate maximum speed module. Max Speed Forward or Max Speed Reverse page appears.

Use increase (+) or decrease (-) Buttons to set maximum speed. If maximum forward or reverse speed is reset below current set speed, current set speed decreases to maximum speed and vehicle decreases.
