Efficiency Manager™ on the e18™ Transmission

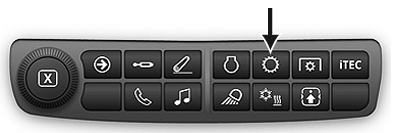

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

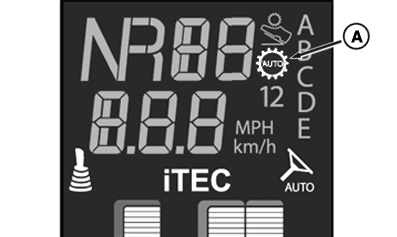

RXA0144669-UN-25AUG14

Efficiency Manager™ Icon on Corner Post Display

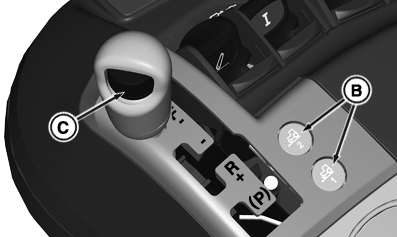

RXA0144668-UN-25AUG14

Efficiency Manager™ 1 and 2 Switch

A - Efficiency Manager™ Icon

B - Set Speed Adjusting Wheel

C - Efficiency Manager™ Buttons

IMPORTANT: Do not uses Efficiency Manager™ during scraper loading.

Efficiency Manager™ shifts transmission to maintain set speed. Three shift modes are available: Full Auto, Custom, and Manual.

Enabling Efficiency Manager™

• Efficiency Manager™, is automatically enabled in Full Auto Mode and Custom Mode.
• To enable Efficiency Manager™ in Manual Mode, select Efficiency Manager™ button 1 or 2 (B) on CommandARM™.

When using Efficiency Manager™

CAUTION: When disabling Efficiency Manager™ tractor rpm changes when to match throttle position, possibly resulting in tractor acceleration.

• Efficiency Manager™ indicator lights on the corner post display (A).
• Set throttle to full engine rpm Tractor reaches set speed only if engine throttle is set to full rpm.
• Efficiency Manager™ commands up or down shifts and engine rpm to maintain wheel speed.
• When in Full Auto Mode and Custom Mode, shifting with bump lever automatically changes set speed to next closest available standard set speed.
• Shift decision is based on load conditions, throttle command, and operator settings.
• Target speed is adjusted using set speed adjuster (C) on shift lever.
• If engine speed falls too low levels, transmission shifts into neutral to prevent engine stall.
• Depressing clutch pedal suspends Efficiency Manager™ but not Efficiency Manager™ function. Efficiency Manager™ resumes in Start gear or lower, when clutch pedal is released. To adjust Start gear see Setting Start Gear in this section.

Disabling Efficiency Manager™

Efficiency Manager™ can be disabled only in Manual Mode, and is engaged when an Efficiency Manager™ button (B) is selected again.

NOTE: Efficiency Manager™ set speeds can be programmed into iTEC™, but not Efficiency Manager™ on and off.
