Efficiency Manager ™ Custom Transmission Settings

NOTE: All settings pertaining to this page are only applicable when Efficiency Manager™ Efficiency Manager™ is not in Full Auto Mode.

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0143050-UN-07OCT14

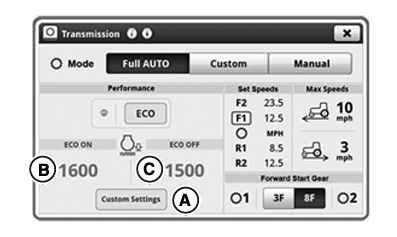

Transmission Home Page

RXA0130327-UN-07OCT14

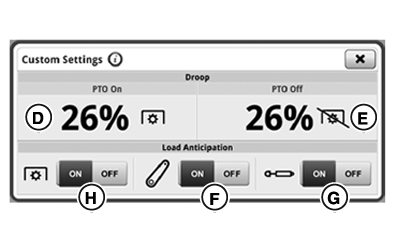

Custom Settings Page

RXA0142302-UN-07OCT14

A - Custom Settings Button

B - ECO Engine Speed ON Module

C - ECO Engine Speed OFF Module

D - Engine Droop PTO ON Module

E - Engine Droop PTO OFF Module

F - Hitch Load Anticipation Toggle

G - SCV Load Anticipation Toggle

H - PTO Load Anticipation Toggle

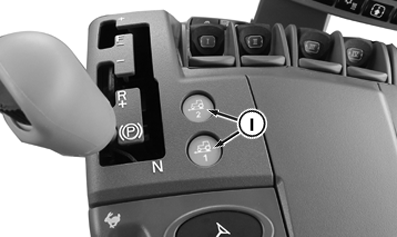

I - Efficiency Manager™ Buttons

Auto Shift Engine Speed Droop sets amount of engine speed drop (under full load) allowed before Custom mode. A lower percentage results in less rpm drop being allowed before downshift.

Under light loads, fuel can be saved by shifting up and throttling back. In Custom mode Efficiency Manager™ shifts up and throttle back to minimum engine speed selected. Minimum engine speed selection can be toggled between 2 adjustable values (B or C) by toggling between ECO ON/OFF.

Load anticipation allows Efficiency Manager™ to adjust transmission gear and engine speed with activation of hitch, SCV, or PTO. If necessary, transmission downshifts and raises engine speed above desired minimum rpm.

If hitch is lowered or raised, system downshifts if engine speed drops below 1500 rpm.

If SCV is set to extend or retract above 25% flow rate, transmission downshifts automatically if predicted engine rpm is below desired minimum. If SCV is set to continuous flow transmission downshifts automatically if predicted rpm is below desired minimum.

Load Anticipation is enabled in Full Auto mode by default. Anticipation features are only active in manual mode when using Efficiency Manager™ via command buttons 1 and 2 (I). In custom or Manual mode load anticipation is enabled when hitch (F), SCV (G), or PTO (H) toggle is turned on.

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0143050-UN-07OCT14

Transmission Home Page

RXA0130327-UN-07OCT14

Custom Settings Page

A - Custom Settings Button

B - ECO Engine Speed ON Module

C - ECO Engine Speed OFF Module

D - Engine Droop PTO ON Module

E - Engine Droop PTO OFF Module

F - Hitch Load Anticipation Toggle

G - SCV Load Anticipation Toggle

H - PTO Load Anticipation Toggle

1. Press Menu Button.

2. On Mode bar, select Custom or Manual Mode.

Set Engine Speed Droop PTO ON

NOTE: Auto Shift Engine Speed Droop PTO ON can be set from 6% —26 %.

• From Transmission page, select Custom Settings button (A).
• Select Droop PTO ON module (D). Value adjustment page appears.
• Adjust percentage value to desired value by using increase (+) and decrease (-) buttons.

Set Engine Speed Droop PTO OFF

NOTE: Auto Shift Engine Speed Droop PTO OFF can be set from 14% — 26 %.

• From Transmission page, select Custom Settings button (A).
• Select Droop PTO OFF module (E). Value adjustment page appears.
• Adjust percentage value to desired value by using increase (+) and decrease (-) buttons.

Turn Load Anticipation ON

• From Transmission page, select Custom Settings button (A).
• Activate appropriate toggle to turn Hitch (F), SCV (G), or PTO Load Anticipation ON or OFF.
