High Flow SCV Identification

RXA0138643-UN-23JAN14

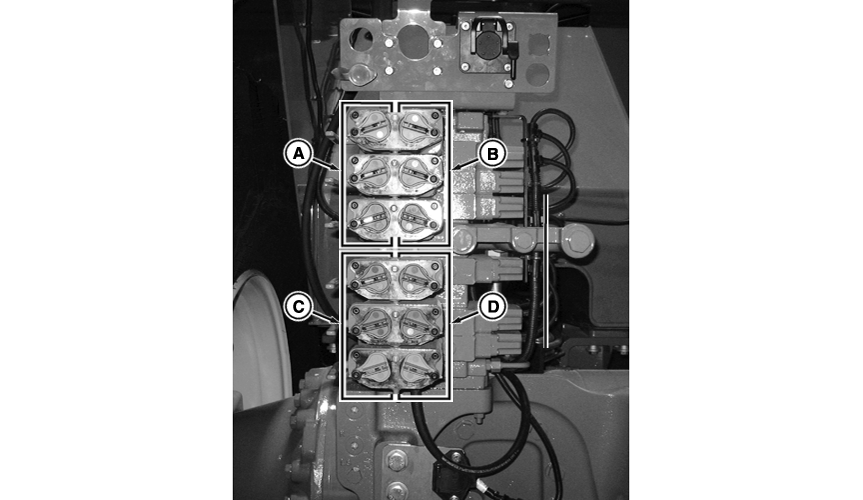

High Flow SCV Couplers Shown

A - Extend Couplers 85cc Pump

B - Retract Couplers 85cc Pump

C - Extend Couplers 90cc Pump

D - Retract Couplers 90cc Pump

NOTE: SCVs 1-3 are supplied by primary pump, SCVs 4-6 (If equipped) are supplied by secondary pump. SCVs 4-6 are recommended for orbital motor use.
