Standard Hydraulic Component Identification

RXA0143457-UN-09JUL14

Standard Hydraulic Component Identification

A - Return Coupler (Motor Return)

B - Load Sense Coupler

C - Pressure Coupler

D - Extend Couplers

E - Retract Couplers

F - Sump Coupler (Motor Case Drain)

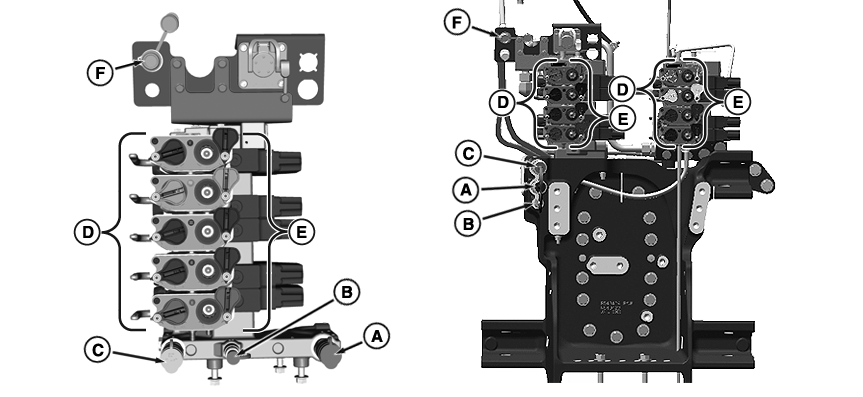

Standard hydraulic components - configuration on the left - 9370R, 9420R, 9470R models. The standard hydraulic components on the right 9520R, 9570R & 9620R models.
