Using Load-Sensing Hydraulic System—Power-Beyond

RXA0138768
RXA0138768-UN-27JAN14

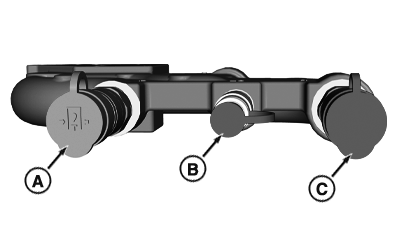

Power-Beyond Coupler

A - Pressure Coupler

B - Load Sense Coupler

C - Return Coupler (Motor Return)

Power-beyond is used as a pressure/flow source for auxiliary functions equipped with independent flow control valves. Use power-beyond when:

  • Tractor SCV control is not needed
  • No other SCV outlet is available

Power-beyond functions require a load-sense signal to regulate pump pressure. Install load-sense hydraulic line to load-sense connection (B). Certain equipment can require modification. (See your John Deere™ Dealer.)
