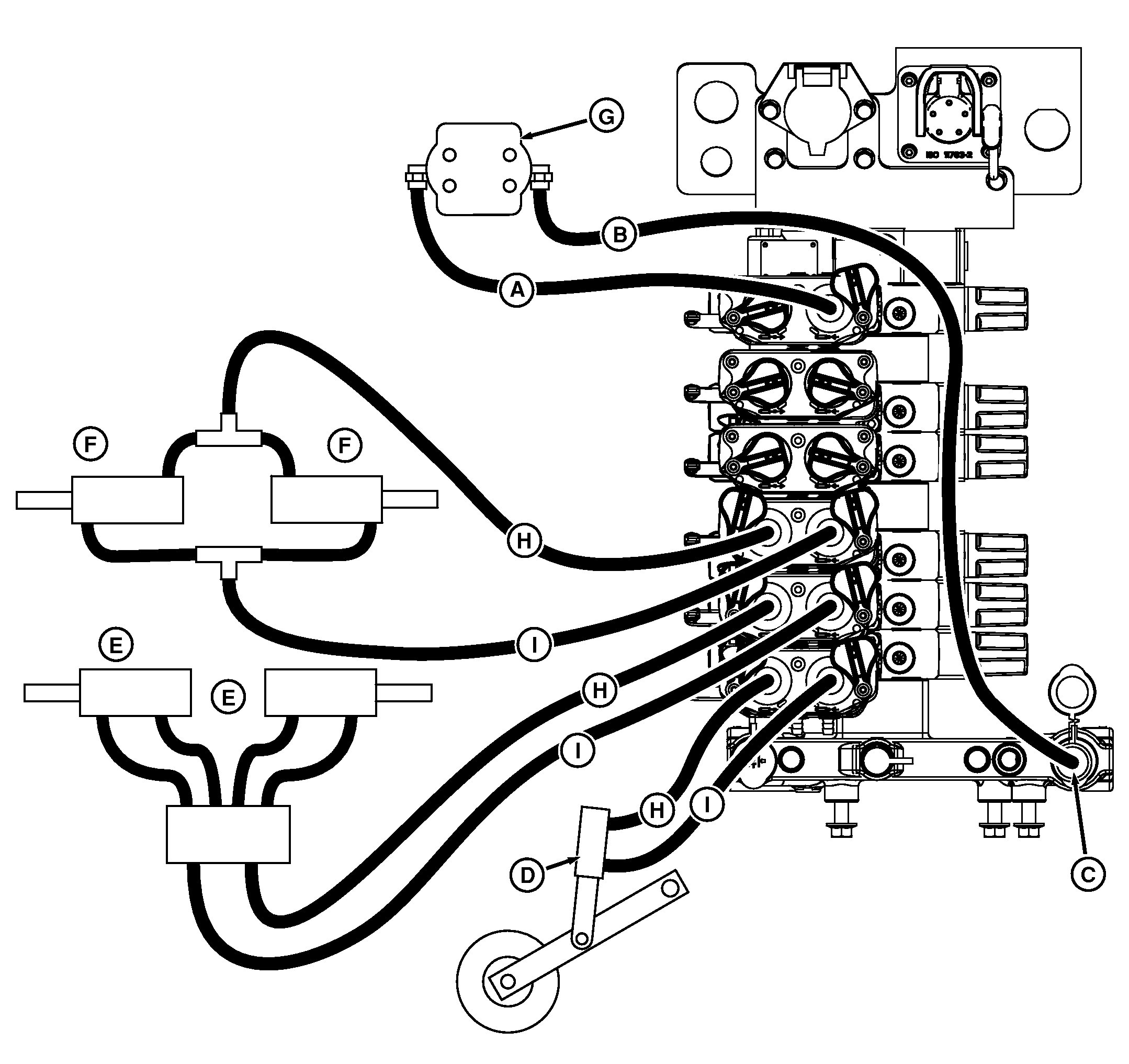

Implement Connection Example 3—Closed Center Valve, Pump at High Pressure—Less Hitch—Standard Hydraulics

RXA0111994-UN-18NOV10

A - Pressure Line

B - Return Line

C - Return coupler (Motor Return)

D - Raise/Lower cylinder

E - Markers

F - Fold

G - Hydraulic Motor

H - Extend Coupler Line

I - Retract Coupler Line

NOTE: For Ag high flow, it is recommended that the hydraulic motor be connected to the top SCV’s (85cc high flow pump).

Not recommended for high flow scraper hydraulics.

In this application motor (G) receives pressure oil from the retract coupler on SCV. Return oil is routed to power beyond return port. When the motor is shut off, the SCV lever is moved to float position to allow motor to coast to a stop. Moving lever to neutral can cause motor to stop abruptly and may damage seals. Since return oil is routed to power beyond return port, no special hose tip is required.
