Using TouchSet™ Depth Controls

RXA0130050
RXA0130050-UN-26AUG13

RXA0141534
RXA0141534-UN-12MAY14

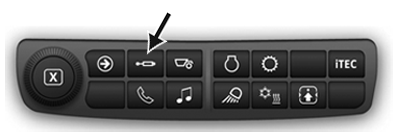

SCV Shortcut Button on Navigation Bar

RXA0127933
RXA0127933-UN-04SEP12

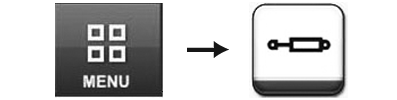

Menu → SCV Icon

RXA0131879
RXA0131879-UN-10APR13

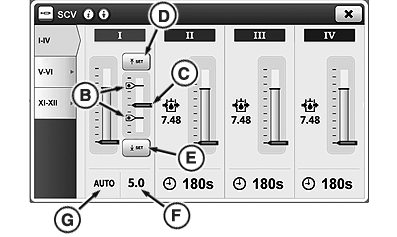

SCV Main Page

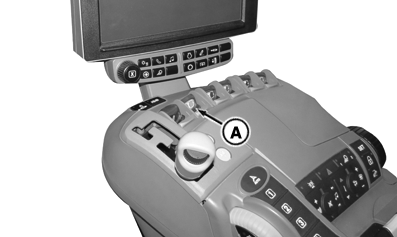

A - SCV I Control Lever

B - Implement Range

C - Implement Position Indicator

D - Upper Setpoint Button

E - Lower Setpoint Button

F - Implement Position

G - Automation Mode Status


CAUTION: Avoid personal injury or death. Do not attempt to install depth control sensors on implements not intended for this system. See implement operator's manual.

Moving implement control unit, sensor, connectors, or linkages, when engine is running, can cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valve (SCV I) is used to electronically control raising, lowering, and setting of implement depth, without leaving cab.

  1. Connect implement to tractor.

  2. Press SCV shortcut button on Navigation Bar or follow alternative path.

  3. Select Menu.

  4. Select SCV Icon.

    NOTE: When using TouchSet™, SCV must be set for feature mode. See Hydraulics and Selective Control Valves Section of this Operator’s Manual.

    Height setting is upper setpoint implement range (B). Lower limit (depth setting) is bottom portion of implement range. Actual implement position is depicted by indicator (C).

    Moving SCV 1 lever (A) into extend or retract detent position with TouchSet™ in AUTO (G) commands implements's position to established set point.

    Rapidly moving SCV I lever into extend or retract region and returning to center position with TouchSet™ in AUTO adjusts implement's position up or down by a fixed amount. Repeated lever ”flick” movements are summed.

  5. Using SCV I lever, lower implement to desired depth while watching implement and CommandCenter™ Implement Position (F).

  6. When implement is at desired depth, press button (E).

  7. Using SCV I lever, raise implement to desired height while watching implement and CommandCenter™ Implement Range (B).

  8. When implement is at desired height, press button (D).


TouchSet™ Continued - Setting Flow

  1. RXA0131898
    RXA0131898-UN-10APR13

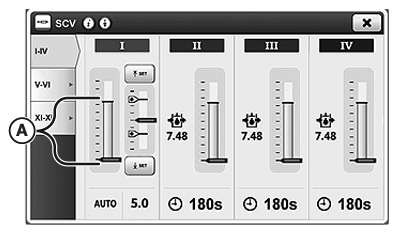

    SCV Main Page

    RXA0131880
    RXA0131880-UN-26AUG13

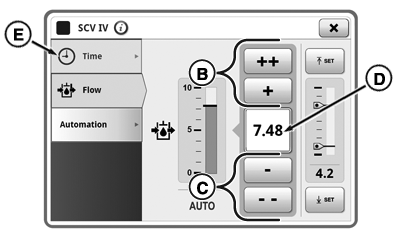

    Flow Tab

    RXA0131882
    RXA0131882-UN-26AUG13

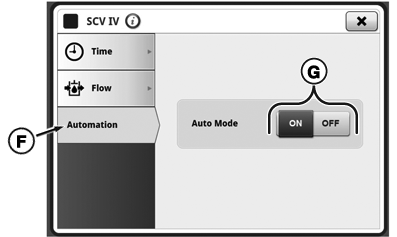

    Automation

    A - Detent Flow Bar Graph

    B - Increase Flow Buttons

    C - Decrease Flow Buttons

    D - Input Box

    E - Detent Time Drop

    F - Automation Tab

    G - ON/OFF Toggle Button

    Touch bar graph (A) on SCV main page to bring up flow tab overlay. Increase flow by pushing button (B) or to decrease flow push buttons (C) to set desired flow.

    NOTE: Bar graph (A) depicts detent flow and amount of detent flow is shown in box (D). Detent time drop down box (E) cannot be adjusted when Automation Mode (F) is enabled. See Configuring Selective Control Valves - Standard Mode in Hydraulics and Selective Control Valves Section of this Operator’s Manual.

    NOTE: Flow is displayed in increments of 0.04 beginning at 0.04 through 10 located in input box (D). Pushing (+) increases flow by 0.04, pushing (++) increases flow by 1.00, and by pushing (-) and (- -) decreases flow setting by same increments.



  2. Press Automation tab (F) then ON or OFF toggle button (G), to activate the Automation feature.
