Change Crankcase Breather Filter Element—15 L Engine

RXA0142546-UN-16JUN14

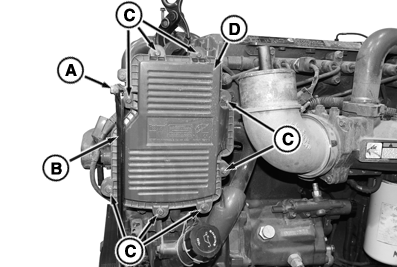

Crankcase Breather Cover

RXA0142547-UN-17JUN14

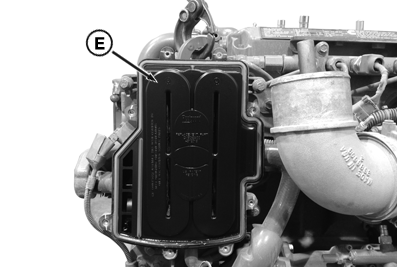

Filter Element

A - Cap Screw

B - Finger Guard

C - Cap Screws (8 used)

D - Cover

E - Filter

1. Open hood.

2. Remove cap screw (A) and finger guard (B).

3. Remove eight cap screws (C) and remove cover (D).

4. Replace and install new filter (E).

5. Replace cover and tighten cap screws to specification.

   Item	Measurement	Specification
   Filter Cover Cap Screws	Torque	5 N·m (45 lb·in)

6. Reinstall bracket and cap screw. Tighten to specification.

   Item	Measurement	Specification
   Finger Guard Cap Screw	Torque	73 N·m (54 lb·ft)

7. Close hood.
