Lubricate HydraCushion™ Front Axle Suspension (If Equipped)

RXA0132813-UN-06JUN13

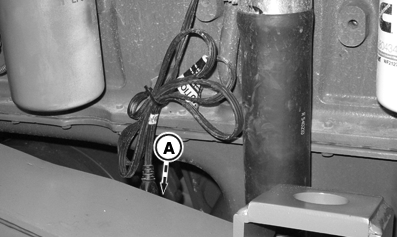

Right-Hand Axle Fitting Location

RXA0132818-UN-30MAY13

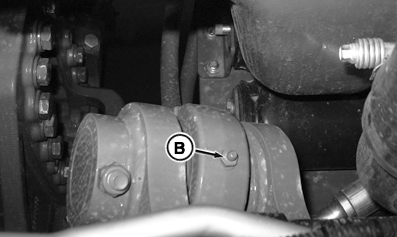

Left-Hand Lubrication Fitting

RXA0132820-UN-06JUN13

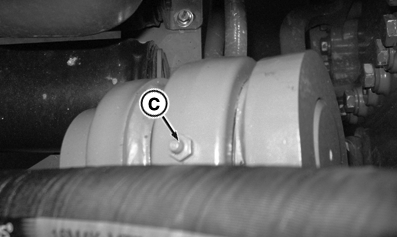

Left-Hand Lubrication Fitting

RXA0132821-UN-06JUN13

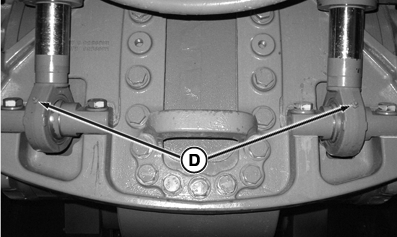

Lower Axle Suspension Fittings

A - Right-Hand Fitting Location

B - Right-Hand Fitting

C - Left-Hand Fitting

D - Lower Suspension Fittings

Lubricate HydraCushion™ front axle suspension components. Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.

Lubricate right-hand (B) and left-hand (D) fittings on located inboard of right (A) and left (C) side frames. Give each fitting approximately 10 pumps of grease.

RXA0133078-UN-06JUN13

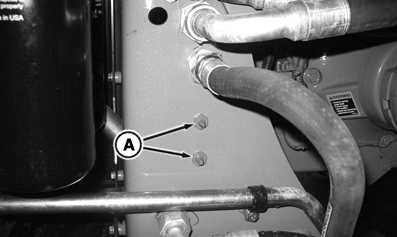

HydraCushion™ Front Axle Rear Busings

RXA0133079-UN-06JUN13

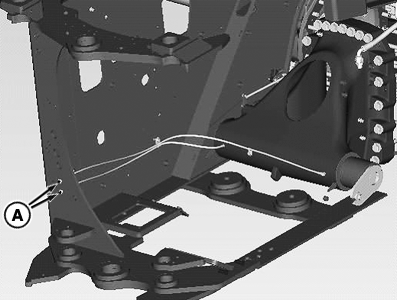

Axle Suspension Rear Bushing Diagram

A - Front Suspension Fittings
