Check Engine Oil—9.0 L Engine

RXA0141840-UN-02JUN14

RXA0141918-UN-02JUN14

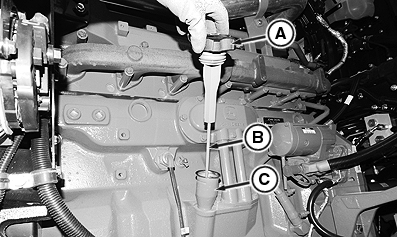

Engine Oil Dipstick

A - Fill Cap

B - Dipstick

C - Fill Tube

D - Cross-hatched Area

IMPORTANT: Do not operate engine with oil level below the “ADD” mark on dipstick

NOTE: Most reliable oil level is determined prior to starting engine, after tractor has been parked on level ground for several hours or overnight.

Loosen fill cap (A) and check oil level on dipstick (B) with tractor on level ground before starting tractor. Oil level anywhere within cross-hatched area (D) on dipstick is considered FULL. If oil is below crosshatched area on dipstick, add oil.

If oil is required, remove fill cap and add oil through fill tube (C). See Diesel Engine Oil -Interim Tier IV, Final Tier IV, Stage III B, and Stage IV or Diesel Engine Oil - Tier II and Stage II in Fuel, Lubricants and Coolant section of this Operator’s Manual.

Tighten cap securely.
