Check Engine Oil—13.5 L Engine

IMPORTANT: Do not operate engine with oil level below cross-hatched area on dipstick.

NOTE: Most reliable oil level is determined prior to starting engine, after tractor has been parked on level ground for several hours or overnight.

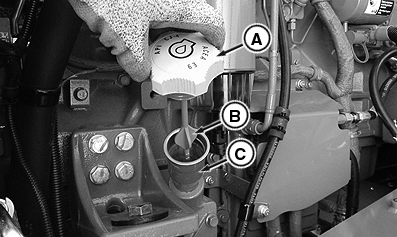

RXA0141917-UN-02JUN14

13.5 L Engine

RXA0141918-UN-02JUN14

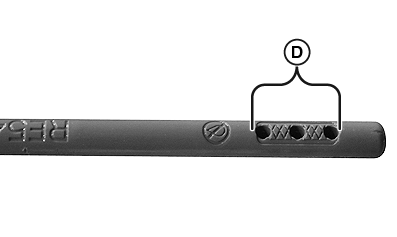

Dipstick Cross Hatch

A - Fill Cap

B - Dipstick

C - Fill Tube

D - Cross-Hatched Area

Prior to starting tractor, remove fill cap (A) and check oil level on dipstick (B) with tractor on level ground. Oil level anywhere within cross-hatched area (D) on dipstick is considered FULL. If oil is below cross-hatched area on dipstick, add oil.

If oil is required, remove fill cap and add oil through fill tube (C). See Diesel Engine Oil - Interim Tier IV, Final Tier IV, Stage III B, and Stage IV or Diesel Engine Oil - Tier II and Stage II in Fuel, Lubricants, and Coolant section of this Operator’s Manual.

Tighten fill cap securely.
