Lubricate Hinge Pins

RXA0147214-UN-09FEB15

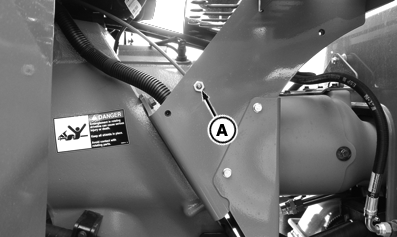

Upper Gudgeon Hinge Pin

RXA0141970-UN-02JUN14

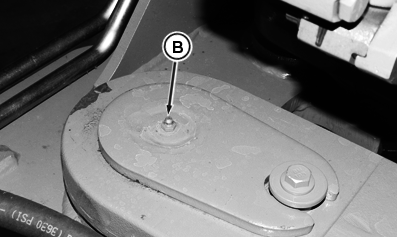

Lower Gudgeon Hinge Pin

A - Upper Hinge Pin

B - Lower Hinge Pin

CAUTION: Place tractor in PARK and remove key before working in hinge area.

Lubricate upper (A) and lower hinge pins (B).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.
