Lubricate Steering Pin Bushings

RXA0141971-UN-02JUN14

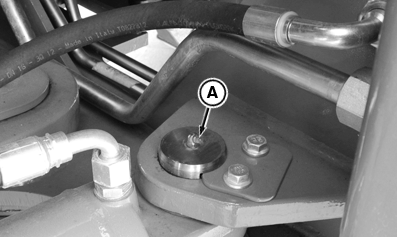

Right-hand Front Steering Pin

RXA0141972-UN-02JUN14

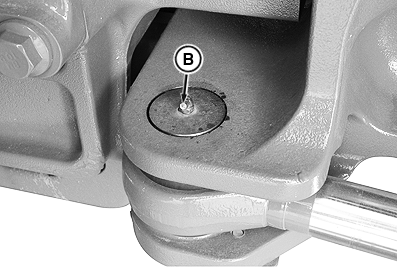

Right-hand Rear Steering Pin

RXA0141973-UN-02JUN14

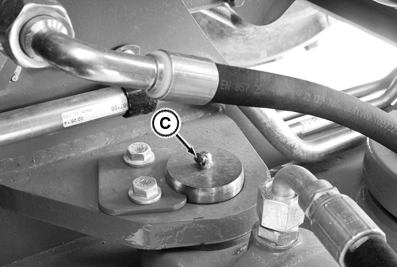

Left-hand Front Steering Pin

RXA0141974-UN-02JUN14

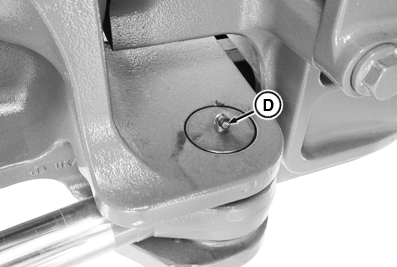

Left-hand Rear Steering Pin

A - Right-hand Front Pin

B - Right-hand Rear Pin

C - Left-hand Front Pin

D - Left-hand Rear Pin

CAUTION: Place tractor in PARK and remove key before working in hinge area.

Lubricate right-hand front (A) and rear (B), left-hand front (C) and rear (D) steering pin bushings.

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section of this Operator’s Manual.
