Check Transmission PARK System

CAUTION: Avoid personal injury. Make sure that everyone is clear of tractor.

RXA0140499-UN-16APR14

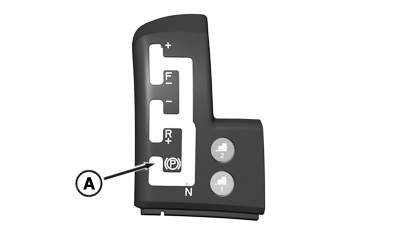

Right-Hand Reverser Lever PARK Position

A - Shift/Reverser Lever PARK Position

1. Position tractor on a 20 % incline (0.6 m (2 ft) vertically for every 3.0 m (10 ft) horizontally) with front of tractor facing downward.

2. Move transmission shift lever (A) into PARK position.

3. CAUTION: If tractor fails this test, contact your John Deere™ dealer immediately.

   If tractor does not hold on incline in PARK position, repair transmission PARK system immediately see your John Deere™ dealer.
