Lubricate Telescoping Drive Shaft

RXA0149743-UN-24AUG15

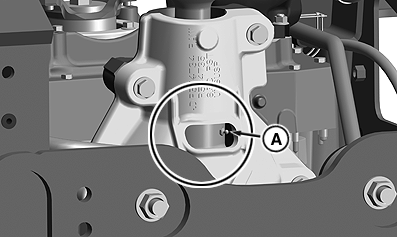

Transmission to Front Axle Drive Shaft (View From Under Tractor)

A - Transmission to Front Axle Drive Shaft Fitting

Lubricate telescoping transmission to front axle drive shaft lubrication fitting (A).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section of this Operator’s Manual.
