Lubricate PTO Drive Shaft

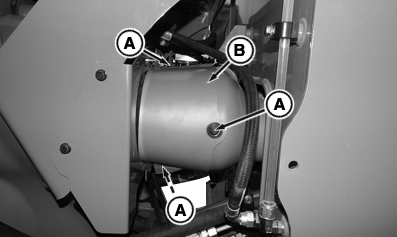

RXA0142745-UN-20JUN14

PTO Drive Shaft Shield

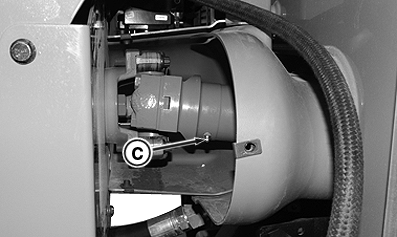

RXA0142916-UN-20JUN14

Rear PTO Shaft Fitting (WIth Parts Removed)

A - Cap Screws

B - PTO Drive Shaft Shield

C - PTO Shaft Fitting

1. Remove three cap screws (A) and remove PTO shield (B) to access to PTO lubrication fitting. Rotate PTO shaft so fitting can be easily accessed for lubrication.

2. Lubricate rear PTO shaft fitting (C). Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.

3. Reinstall PTO drive shaft shield. Tighten cap screws.

   Item	Measurement	Specification
   Drive Shaft Shield Cap Screws	Torque	28 N·m (21 lb·ft)
