Lubricate Heavy-Duty Gudgeon Bearings

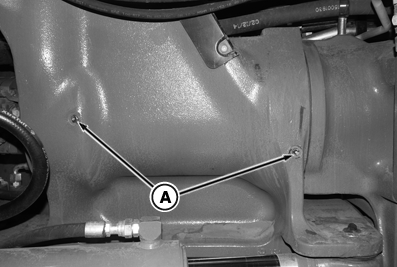

RXA0142539-UN-16JUN14

Left-hand Heavy-Duty Gudgeon Fittings

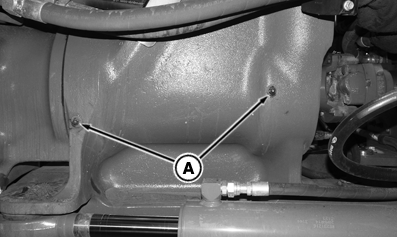

RXA0142540-UN-16JUN14

Right-hand Heavy-Duty Gudgeon Fittings

A - Heavy-Duty Gudgeon Tapered Roller Bearing Fittings

IMPORTANT: Over-lubrication of bearings may result in damage to bearings, seals, and drive shaft.

Use only hand pump grease gun. other grease gun types fill grease cavity too quickly and displace bearing seal. Grease then may bypass bearing, leaving it improperly lubricated.

Lubricate heavy-duty gudgeon tapered roller bearing fittings (A) on both left-hand and right-hand side and on top of gudgeon. Give each fitting approximately 40 pumps of grease.

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section of this Operator’s Manual.
