Lubricate Lower Drive Line Bearing

RXA0141923-UN-02JUN14

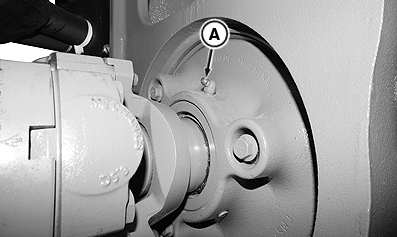

Gudgeon Drive Line Bearing Fitting

A - Drive Line Bearing Lubrication Fitting

IMPORTANT: Operate tractor at low speeds (below 10 mph (16 km/h)) for first 6 hours of operation.

IMPORTANT: Over lubrication can result in premature bearing and drive shaft failures.

Use only hand pump grease gun. Other types of grease guns fill the grease cavity at greater speed. This can push retention seal out of position, allowing grease to enter gudgeon center cavity and leaving bearing improperly lubricated.

Lubricate lower drive line bearing lubrication fitting (A).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section of this Operator’s Manual.
