Lubricate Rear Hitch

IMPORTANT: Normal service is every 250 hours. If used daily, service every 50 hours.

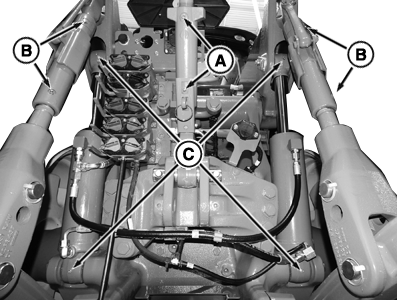

RXA0150422-UN-11NOV15

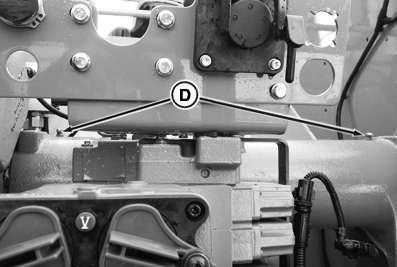

RXA0150423-UN-11NOV15

A - Center Link Lubrication Fittings

B - Lift Link Lubrication Fittings

C - Lift Cylinders Lubrication Fittings

D - Rockshaft Lubrication Fittings

Lubricate hitch fittings (A-D).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.
