Change Engine Oil and Filter—9.0 L Engine

RXA0141930-UN-02JUN14

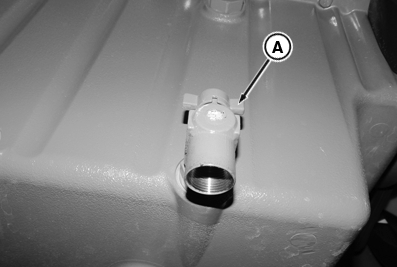

Crankcase Drain Valve

RXA0141932-UN-02JUN14

Remove Filter Element

RXA0141934-UN-02JUN14

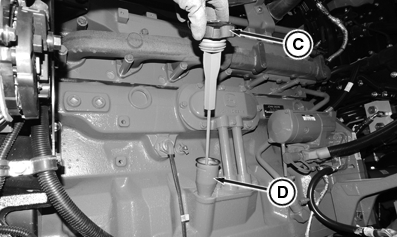

Fill Oil Tube

RXA0110097-UN-10DEC10

Crosshatch Area

A - Engine Drain Valve

B - Engine Oil Filter Cover

C - Filler Cap

D - Filler Tube

E - Crosshatch Area

IMPORTANT: Sulfur content should not exceed 0.10%. Sulfur content less than 0.10% is preferred. Refer to Fuel, Lubricants and Coolant section of this Operator’s Manual for more information on oil change intervals.

NOTE: The initial break-in service interval of a new or rebuilt wet sleeve engine with Break-In Plus must go at least 100 hours to assure the surface mating of the rings and liners has had an opportunity to occur. The 100 hour minimum applies to all new or rebuilt engines. The maximum service interval is the same as the service interval recommendations listed in Engine Oil and Filter Service Intervals for your engine. To confirm which engine your tractor is equipped with, see Identification Numbers Section - Record Engine Serial Number in this Operator's Manual.

For subsequent oil changes, see Engine Oil and Filter Service Intervals for your engine located in the Fuels, Lubricants, and Coolant Section of this Operator's Manual.

Operate engine to warm oil. Stop engine.

Place a large catch pan below engine drain valve (A) and open valve to drain oil.

NOTE: Do not remove relief valve plug on side of filter housing. Oil in filter housing will drain back into crankcase when filter is removed.

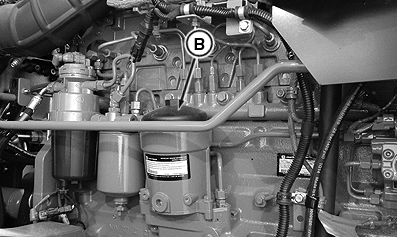

1. Remove oil filter cover (B) using a 32 mm (1.25 in.) wrench.

2. Remove cap and filter element.

3. While holding cap, strike filter element against a solid surface to unfasten filter from cap.

4. Discard used filter.

5. Remove O-ring seal and replace with new O-ring provided with new filter element. Lubricate new O-ring with a small amount of engine oil.

6. Press new filter element into cap until it snaps into place.

7. Insert cap and filter assembly into oil filter housing. Screw cap into place and tighten cap to specification.

   Item	Measurement	Specification
   Oil Filter Cap
   Cap	Torque	40 N˙m (30 lb·ft)

8. Close engine crankcase drain valve.

9. Remove engine oil filler cap (C) and refill crankcase with seasonal viscosity grade oil through filler tube (D).

   Crankcase Capacity with Filter
   9370R Engine Oil .............. 34 L (9.0 gal)

10. Start and run engine for a two minutes. Then stop engine and check for oil leaks.

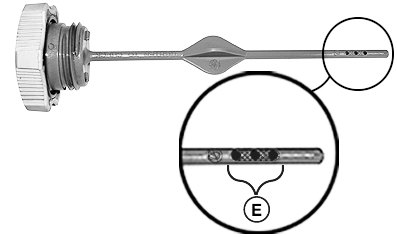

11. NOTE: Engine oil level indicator is a dipstick with a "crosshatched" area with a "safe" zone. Anywhere in the dipstick crosshatched safe zone is considered FULL.

    Recheck oil level with dipstick to ensure level is in crosshatched area (E).
