Inspect Drawbar Support and Cap Screws

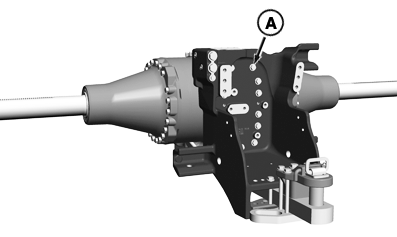

RXA0139208-UN-19FEB14

Heavy Duty Double Reduction Axle Drawbar Support

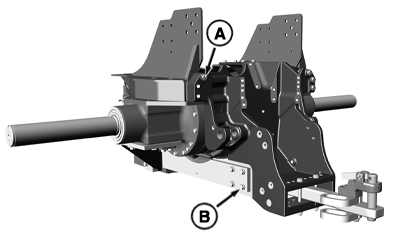

RXA0139447-UN-21MAR14

Heavy Duty Single Reduction Axle Drawbar Support

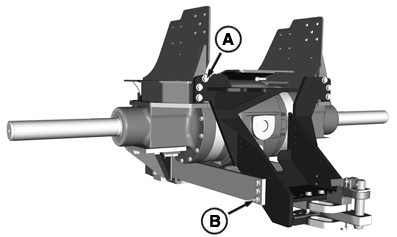

RXA0139448-UN-21MAR14

Standard Single Reduction Axle Drawbar Support

Inspect and tighten drawbar support cap screws (A) and stabilizer cap screws (B).

Drawbar Support Cap Screw Torque Specifications
Drawbar Support Cap Screws to Frame (A)	490 N·m (361 lb·ft)
Support Stabilizer Cap Screws to Drawbar Support (B)	490 N·m (361 lb·ft)
