Replace Transmission Vent Filter

RXA0142029
RXA0142029-UN-03JUN14

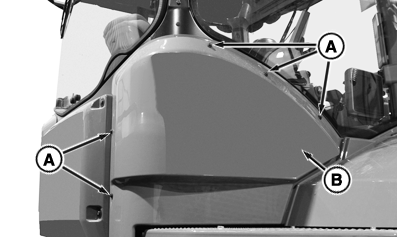

Right-Hand Cab Panel

RXA0142030
RXA0142030-UN-03JUN14

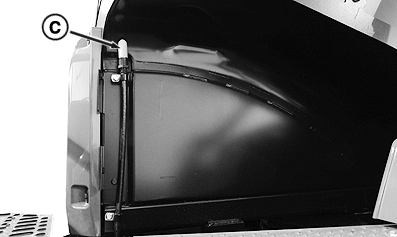

Hydraulic Reservoir Vent Filter

A - Cap Screws

B - Right-Hand Cab Panel

C - Vent Filter

  1. Remove left rear cab panel retaining cap screws (A) and remove cab panel (B).

  2. Release retaining hose clamps to remove vent filter (C) from hose.

  3. Install new filter onto hose and secure with retaining hose clamps.

  4. IMPORTANT: Do not over tighten retaining screws. Overtightening may result in damage to cab panels.

    Reinstall left rear cab panel and tighten retaining cap screws.

RX32825,0000653-19-20150514
