Replace Cab Fresh Air Filters and Recirculation Filters

Replace Cab Recirculation Filter

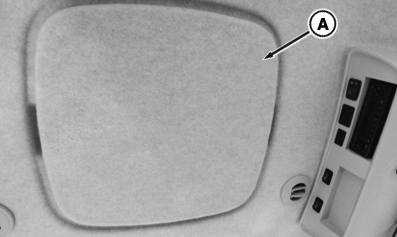

RXA0142919-UN-23JUN14

Remove Roof Upholstery

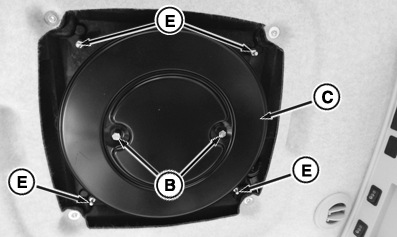

RXA0142920-UN-23JUN14

Remove Cover

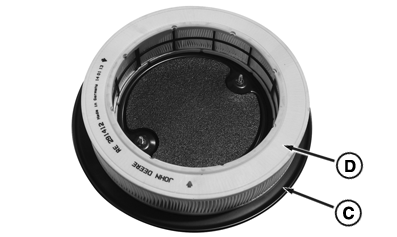

RXA0142921-UN-23JUN14

Remove Filter

A - Upholstery Cover

B - Fasteners

C - Cover

D - Filter

E - Ball Stud

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow instructions in the implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

NOTE: Replacement interval can vary according to operating conditions.

1. Close entry door to prevent debris getting into cab.

2. Remove upholstery cover (A) in headliner by grabbing outer edges and pulling down.

3. While holding cover (C) in place with one hand, remove fasteners (B) allowing cover to be lowered.

4. Using a clean cloth, wipe down inside and outside filter.

5. Remove and discard old recirculation filter (D).

6. Install new filter.

7. Install cover (C).

8. Install cover panel by lining up ball studs (E) with clip nuts (not shown) and pushing up.

Replace Cab Fresh Air Filter

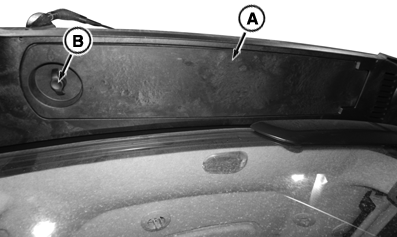

RXA0142922-UN-23JUN14

Let Cover Swing By Turning Knob

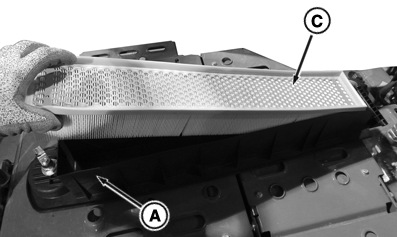

RXA0142923-UN-23JUN14

Remove Filter

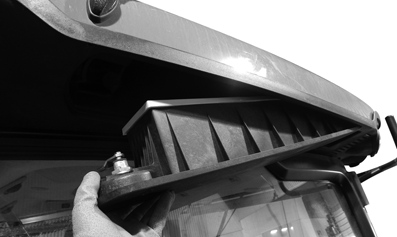

RXA0142924-UN-23JUN14

Install Filter and Cover

A - Cover

B - Knob

C - Filter

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow instructions in the implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

NOTE: Replacement interval can vary according to operating conditions.

1. Close entry door to prevent debris getting in cab.

2. Support cover.

3. Turn knob (B) and swing cover (A) down.

4. Remove old filter (C) and discard.

5. Using a clean cloth, wipe down inside and outside filter cover.

6. Install new filter.

7. Close cover and turn knob 180° to lock latch.
