Change Transmission/Hydraulic Reservoir Suction Screens/Axle Oil and Filters

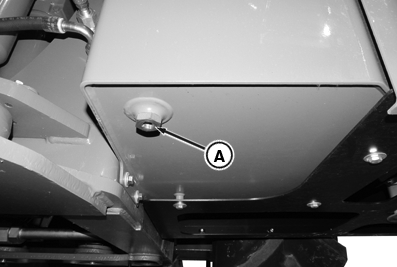

RXA0141856-UN-02JUN14

Reservoir Rear Drain Plug

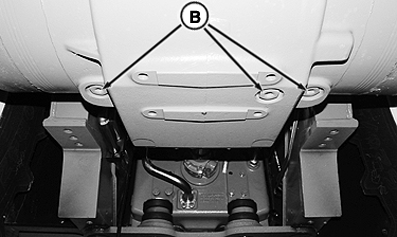

RXA0142111-UN-06JUN14

Front SR Axle Drain Plugs

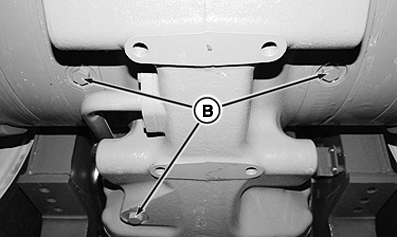

RXA0142108-UN-06JUN14

Front DR Axle Drain Plugs

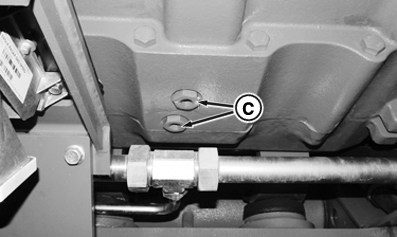

RXA0142109-UN-06JUN14

Transmission Drain Plugs

A - Reservoir Drain Plug

B - Front Axle Drain Plugs

C - Transmission Drain Plugs

IMPORTANT: Prevent premature axle failure. Carefully follow drain and fill procedure.

NOTE: Recalibrate transmission only if transmission shift characteristics change after transmission oil and filter change. See Powershift Transmission Calibration procedure in General Maintenance and Inspection Section.

Maximum transmission/hydraulic oil reservoir/axles volume is 265.5 L (71.0 gal), depending on option configuration. Select appropriately sized containers for draining oil.

Park tractor on level ground, place transmission in PARK and shut engine OFF. Allow oil to cool for few minutes.
Remove hydraulic reservoir drain plug (A) in gudgeon area and direct oil into a catch oil container.
Remove three front axle plugs (B) to drain oil.
Remove two transmission plugs (C) to drain oil.

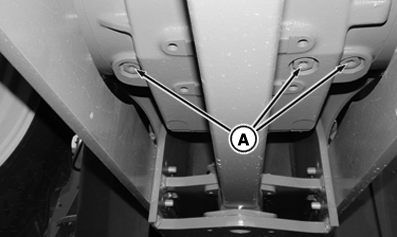

RXA0142113-UN-06JUN14

Rear SR Axle Drain Plugs

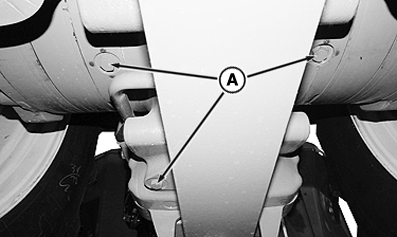

RXA0142110-UN-06JUN14

Rear DR Axle Drain Plugs

A - Rear Axle Drain Plugs

Remove three plugs (A) to drain rear axle oil.

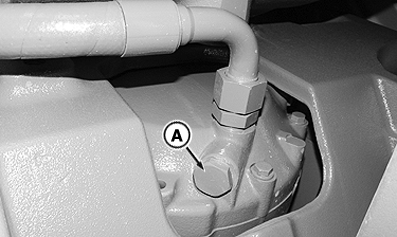

RXA0142116-UN-06JUN14

PTO Dropbox

A - PTO Dropbox Drain Plug

If equipped with PTO, remove dropbox plug (A).

Reinstall and tighten reservoir drain plug.
Reinstall transmission drain plug.

Item Measurement Specification

Transmission Drain Plug Torque 70 N·m (52 lb·ft)
Reinstall all removed front and rear axle drain plugs.

Item Measurement Specification

Front and Rear Axle Drain Plugs Torque 70 N·m (52 lb·ft)
If equipped, reinstall PTO dropbox drain plug.

Item Measurement Specification

PTO Dropbox Drain Plug Torque 70 N·m (52 lb·ft)
NOTE: Some parts in illustration have been removed to better show transmission suction screen.

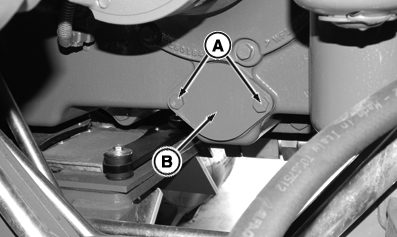

RXA0142513-UN-20JUN14

Transmission-Rear View

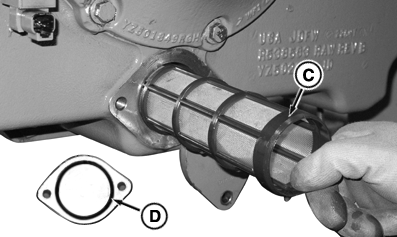

RXA0142403-UN-10JUN14

Transmission-Suction Screen with Cover O-ring

A - Cap Screws

B - Suction Screen Cover

C - Suction Screen

D - Cover O-ring

Remove suction screen cover cap screws (A) and remove cover (B).

Remove suction screen (C) and clean with a solvent.
Remove and discard O-ring (D) on suction screen cover.
Inspect for debris in suction screen cavity using a flashlight or magnet.
Install new O-ring on cover.
Reinstall suction screen and cover. Tighten cap screws to specification.

Item Measurement Specification

Suction Screen Cover Cap Screws Torque 55 N·m (40 lb·ft)

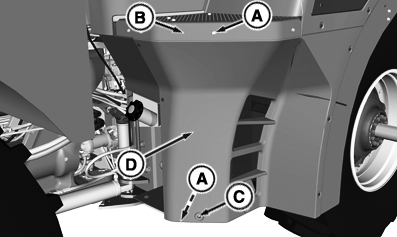

RXA0142339-UN-12JUN14

Platform and Panel

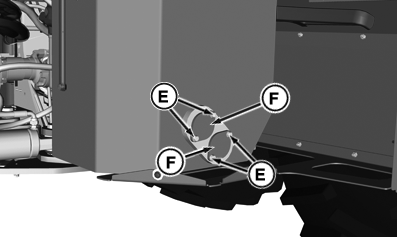

RXA0142340-UN-12JUN14

Screen Covers

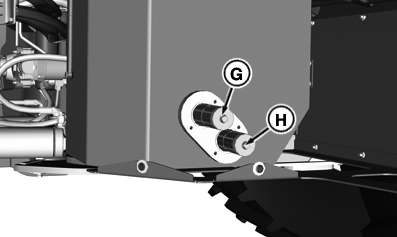

RXA0142341-UN-12JUN14

Suction Screens

A - Platform Cap Screws (11 used)

B - Platform Step

C - Panel Cap Screws (7 used)

D - Lower Shield Panel

E - Screen Cover Cap Screws (4 used)

F - Screen Covers (2 used)

G - Axle Lube Suction Screen

H - Charge Pump Suction Screen

Remove platform cap screws (A) and remove platform step (B).

Remove panel cap screws (C) and remove lower shield panel (D).
Remove screen cover cap screws (E) and both screen covers (F).
Remove axle lube suction screen (G) and clean with a solvent.
Remove charge pump suction screen (H) and clean with a solvent.
Reinstall suction screens and covers. Tighten screws to specification.

Item Measurement Specification

Platform Cap Screws Torque 73 N·m (53.8 lb·ft)
Reinstall lower panel and tighten cap screws to specification.

Item Measurement Specification

Panel Cap Screws Torque 37 N·m (27 lb·ft)
Reinstall platform and tighten cap screws to specification.

Item Measurement Specification

Screen Cover Cap Screws Torque 79 N·m (58 lb·ft)
NOTE: A drain pan is recommended for 1.9 L (2 qts) oil spilled when changing filter.

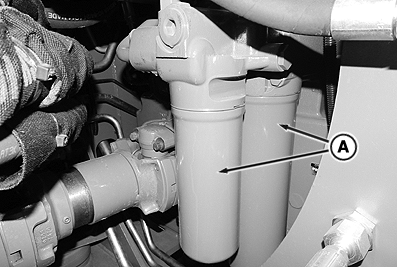

RXA0142106-UN-05JUN14

Transmission Oil Filters

A - Transmission Oil Filters

Remove transmission oil filters (A), at right-hand rear of the transmission.

Lubricate new filter O-rings with hydraulic oil and install filters. Tighten one-half turn after O-rings contact filter housing base.
NOTE:

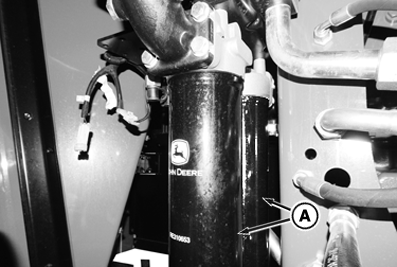

RXA0142114-UN-06JUN14

SR Axle Hydraulic Oil Filters

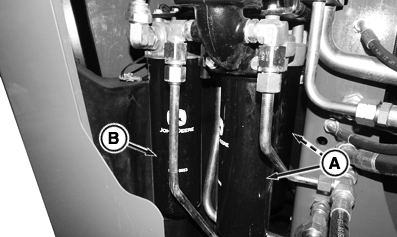

RXA0142105-UN-06JUN14

DR Axle Hydraulic and Axle Filters

A - Hydraulic Oil Filters

B - DR Axle Oil Filter

Use drip pan to catch any oil spilled when hydraulic oil filters are removed.

Remove hydraulic filters (A), at left-hand side of gudgeon at scheduled 1500 hour service interval or if indicator light comes on.

Lubricate filter gaskets with hydraulic oil and install filters Tighten filters one half turn after O-ring contacts filter housing base.
NOTE: Use a drip pan to catch any oil spilled when axle oil filter is removed.

NOTE: Double reduction (DR) axle is only available on 9520R, 9570R, and 9620R models.

Replace DR axle filter (B), located next to hydraulic oil filters at scheduled 1500 hour service interval or if indicator light comes on.
Lubricate O-ring with hydraulic oil and install axle filter. Tighten one half turn after O-ring contacts filter housing base.

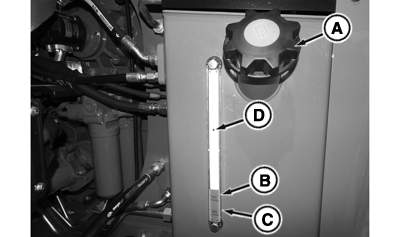

RXA0141848-UN-02JUN14

Hydraulic Reservoir Sight Gauge

A - Hydraulic Reservoir Fill Cap

B - FULL COLD

C - MIN COLD Mark

D - High Volume Takeout Oil Mark

Perform Following Steps For All Tractors

NOTE: Hydraulic oil reservoir does not hold all system hydraulic oil capacity. Transmission and front and rear axles also hold additional system oil. If possible, check oil level prior to first start of day. Ambient temperature should be 7° C. (45° F) or above. Oil level in the reservoir will fluctuate depending upon the volume of oil exchanged with an attached implement.
For applications or implements requiring high volumes of oil transfer (for example - large air seeders or pulling 3 scrapers), hydraulic reservoir can be filled up to High Volume Takeout Oil Mark (D). 58.5 L (15.4 gal) above MIN COLD (C)).

Remove hydraulic oil reservoir fill cap (A) and add hydraulic oil to the reservoir.

Transmission/Hydraulic Reservoir/Axle System Capacities (with Filters)

Transmission/Hydraulic Reservoir/Axle System: (Reference for topping off the system.)

Hydraulic Reservoir Volume Reference Mark:

.. Full Cold Mark.............. 92.7 L (24.5 gal)

.. Min Cold Mark.............. 81.4 L (21.5 gal)

.. High Volume Takeout Oil Mark.............. 140.0 L (37.0 gal)

.. Oil Volume Between ”Min Cold” and “Full Cold” Marks.............. 11.4 L (3 gal)

Transmission Fill Volume:

.. Transmission .............. 37.9 L (10.0 gal)

Transmission/Hydraulic Reservoir/Axles Fill Volume¹:

.. Transmission, 9370/9420/9470, SR Axles².............. 276 L (73.0 gal)

.. Transmission, 9370/9420/9470, SR Axles³.............. 284 L (75.0 gal)

.. Transmission, 9520/9570/9620, DR Axles².............. 220 L (58.0 gal)

.. Transmission, 9520/9570/9620, DR Axles³.............. 227 L (60.0 gal)

See Specifications Section for Additional Specifications

Reinstall and tighten hydraulic reservoir fill cap.
NOTE: Fill transmission with limited quantity of oil to ensure that the transmission lube pump startup is wet. The balance of refill oil has to be added into the hydraulic reservoir.

For Single Reduction Axle Tractors: perform additional steps 34 through 37.

For Double Reduction Axle Tractors: Perform this step 34 to prefill transmission, then proceed to step 38.

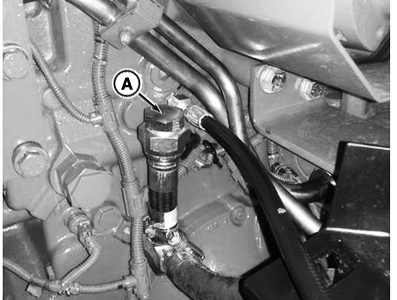

RXA0144384-UN-07AUG14

e18™ Transmission Fill Tube

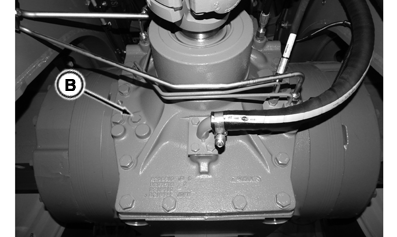

RXA0142213-UN-06JUN14

SR Front Axle Plug

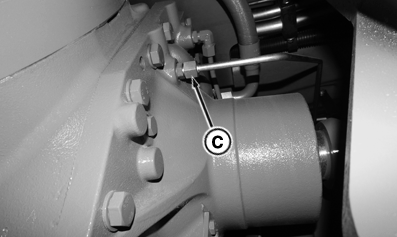

RXA0142214-UN-06JUN14

SR Rear Axle Line Fitting

A - Fill Tube

B - Front Axle Bleed Plug

C - Rear Axle Bleed Line Fitting

Prefill transmission with 37.9 L (10.0 gal.) of John Deere HY-GARD® or JDM J20C oil at transmission fill tube (A).

Remove front axle bleed plug (B) and disconnect rear axle line fitting (C).
Start and set engine speed at 1200 rpm for approximately 5 minutes or until oil is circulated and appears at both front and rear axle ports.
Stop engine and install front axle bleed plug (B) and connect rear axle line fitting (C). Go to next step 38.

Item Measurement Specification

Front Axle Plug Torque 70 N·m (52 lb·ft)

Rear Axle Line Fitting Torque 24 N·m (18 lb·ft)
IMPORTANT: Do not depress brake pedal during this step. If brake pedal is depressed, additional oil flows to axles and result in an inaccurate oil level check.

OIL LEVEL CHECK PROCEDURE:

Perform For All Tractors: Start engine with transmission in PARK and set engine speed at 1200 rpm for 5 minutes.
Shut engine OFF and wait 5 minutes for oil level to stabilize.
RXA0141848-UN-02JUN14

Hydraulic Reservoir Sight Gauge

A - Hydraulic Reservoir Fill Cap

B - FULL COLD

C - MIN COLD Mark

D - High Volume Takeout Oil Mark

Check to ensure transmission/hydraulic reservoir/axle oil level is visible between “Min Cold” (C) and “Full Cold” (B) marks in the sight gauge.

NOTE: Volume capacity between “Min Cold” mark (C) and “Full Cold” mark (B) is 11.4 L (3 gal).
If oil level is visible between Min Cold (C) and Full Cold (B), tractor can be used for normal operation.

Identify oil volume required in reservoir until it reaches marks Min Cold (C) or Full Cold (B). If oil level is below (C) in sight gauge, add HY-GARD Hydraulic Oil through reservoir fill cap (A).

NOTE: An exception is implements with large hydraulic cylinders that remove large volumes of oil from tractor hydraulic system. Oil level should be near bottom mark of sight gage with implement positioned to contain maximum amount of oil.

NOTE: Oil level in reservoir will rise as temperature increases.
If low oil level results in pressure drop, a STOP engine light will come on.

Replace the hydraulic oil reservoir vent filter. See REPLACE HYDRAULIC OIL RESERVOIR VENT FILTER in this Section.
IMPORTANT: Excess hydraulic oil can result in decreased engine power and decrease fuel economy.

If oil level is above Full Cold (B) mark, remove enough oil to bring it down to Full Cold mark level.

Recommended method to remove oil is use drain plug under hydraulic oil reservoir and direct oil into a container.

¹ System volume based on axle and hydraulic configuration.
² Without 3-point rear hitch and PTO
³ With 3-point rear hitch and PTO
