Status Area


Status Area

RXA0131243
RXA0131243-UN-08MAR13

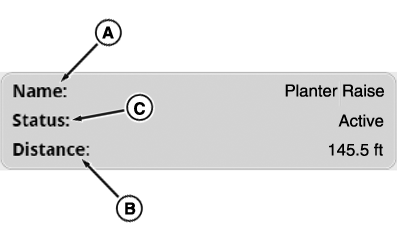

Status Area on Main Page

  • A—Name: Name of sequence that is currently running.
  • B—Distance: Displays accumulated distance while iTEC™ sequence is running.
  • C—Status: Indicator of current iTEC™ status.
    • Off - No sequence execution possible.
    • Ready - Waiting for iTEC™ button to which a sequence is assigned to be pressed.
    • Active - iTEC™ sequence execution active.
    • RPM Limit - Engine speed is out of range 1
    • Park - Transmission indicates that park lock is engaged 1
    • Operator Presence - No operator presence, no iTEC™ execution allowed. Operator returns to seat 1
    • Wheel Speed Low - Wheel speed < 0.5 km/h (0.3 MPH), execution is paused.
    • Complete - Sequence successfully completed.
    • Aborted - Sequence execution aborted by operator or active abort condition.
    • Error - One or more sequence steps did not execute.

Manage Sequence Page

RXA0129723
RXA0129723-UN-06MAR13

Manage Sequences Button

RXA0131143
RXA0131143-UN-26FEB13

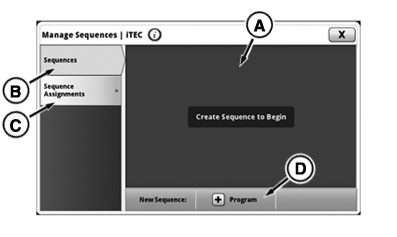

iTEC™ Manage Sequences Page

Select Manage Sequences button on iTEC™ main page.

  • A — iTEC™ Content Section: Available sequences or sequence assignments are displayed.
  • B — Sequences Tab: View available, delete saved, edit saved, or add new sequences.
  • C — Sequence Assignments Tab: View assigned sequences or give sequence assignment.
  • D — Program Button: Manually program new sequence.

iTEC is a trademark of Deere & Company
1 Sequences pauses or cannot start if this condition exists. Correct condition to resume sequence.

SV81855,0000030-19-20130923
