Install Machine Communications Radio (MCR) Antenna

NOTE: This antenna is only available for machines that have a factory installed Machine Communications Radio. Refer to John Deere™ Machine Communications Radio operator’s manual for more information.

RXA0131714-UN-15APR13

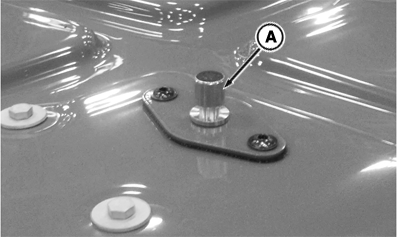

MCR Antenna Post

RXA0131715-UN-15APR13

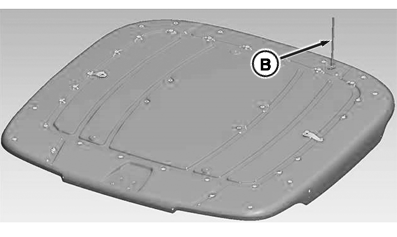

Connect MCR Antenna

A - MCR Antenna Post

B - MCR Antenna

1. Remove antenna from storage under instructional seat.

2. Remove cap from MCR antenna post (A) from rear left roof.

3. Screw MCR antenna (B) onto MCR antenna post.
