7-Pin Outlet

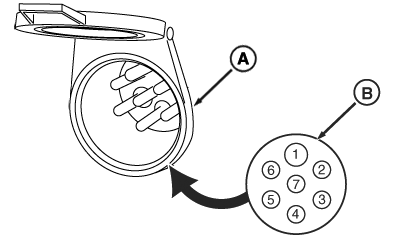

RXA0126196-UN-05JUN12

A - 7-Pin Outlet

B - Outlet Numbers

7-pin outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor signals and other lights are obscured.

If extra implement lights and controls, such as switches are needed, contact your John Deere™ dealer. Your dealer can provide information on methods to tie in light switch with accessory wires located in 7-Pin outlet on back of tractor.

NOTE: Matching 7-pin plug is available through your John Deere™ dealer.

Outlet Numbers (B)	Function-Rear Connection	Function-Front Connection
1	Ground	Ground
2	Flood (Implement Lights)	Flood (Implement Lights)
3	Left Turn Signal	Left Turn Signal
4	Brake Lights	Not Used
5	Right Turn Signal	Right Turn Signal
6	Tail Light	Tail Light
7	Accessory	Not Used
