CommandARM™ SCV Control Levers

RXA0138560-UN-24FEB14

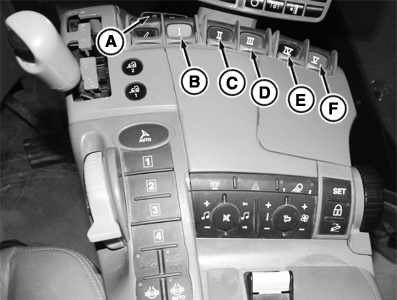

SCV Control Levers

RXA0133735-UN-17JUL13

Controls Setup Icon

A - SCV Control Lever Lock

B - SCV 1 Control Lever

C - SCV 2 Control Lever

D - SCV 3 Control Lever

E - SCV 4 Control Lever

F - SCV 5 Control Lever

NOTE: Tractors equipped with hitch may have up to 6 SCVs installed. Tractors without hitch may have up to 8 SCVs installed.

NOTE: Reconfigurable SCV Controls allows operator to match device with various implement functions. This process is called “Assignment”input to function. See Controls Setup in CommandCenter™ section of this Operator’s Manual for more information.

SCV control lever lock (A) locks out control of SCVs by SCV control levers only.

Controls Setup icon appears on SCV control levers that are reconfigurable.
