Auxiliary Power Strip and Electrical Outlet Use

RXA0099078-UN-25FEB09

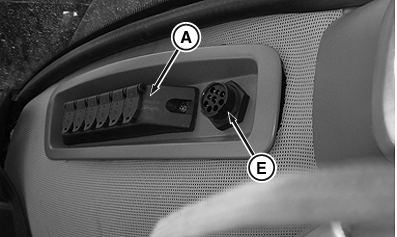

Auxiliary Power Strip

RXA0131998-UN-06MAY13

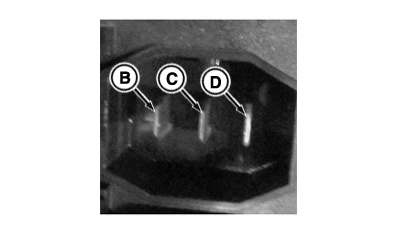

Auxiliary Power Strip Convenience Outlet

A - Auxiliary Power Strip

B - Battery (Unswitched)

C - Ground

D - Battery (Switched)

E - Diagnostic Connector (DEALER USE ONLY)

Auxiliary Power Strip

IMPORTANT: Power strip is not surge suppressor. Electrical equipment with program memory requires protection from damage of electrical surges and spikes.

Power strip (A) provides six outlets of 12 volt power with grounds for use when connecting auxiliary equipment. This power is 30 amp switched and 30 amp unswitched.

Adapters plug directly into power strip. To change to switched power on adapter, remove small tab at end of slot on plug and rotate plug 180°.

Adapters are available from your John Deere™ dealer for following: Accessory outlet adapters, three-way convenience adapters, and standard adapters.

Accessory Electrical Outlets

RXA0142570-UN-17JUN14

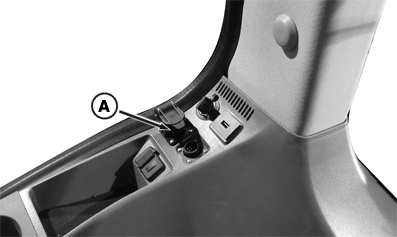

Accessory Electrical Outlet on Right-Hand Console

RXA0141390-UN-02MAY14

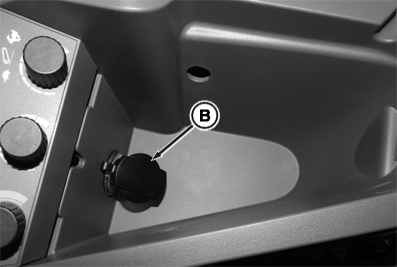

Accessory Electrical Outlet in Storage Box

RXA0141391-UN-02MAY14

Accessory Electrical Outlet Pins

A - Accessory Outlet (Right-Hand Console)

B - Accessory Outlet (In Storage Box)

C - Battery (Unswitched)

D - Switched Circuit

E - Ground

NOTE: Outlets are protected by a 30 amp fuse.

12 volt accessory outlets (A) located on right-hand console or outlet (B) in storage box are used when connecting auxiliary equipment.

Pin (C) provides battery power (hot), pin (D) provides (key) switched power and pin (E) provides ground. For additional information on connections, see appropriate auxiliary equipment installation instructions or your John Deere™ dealer.
