Connect Compatible Electronic Equipment

RXA0142571-UN-13JUN14

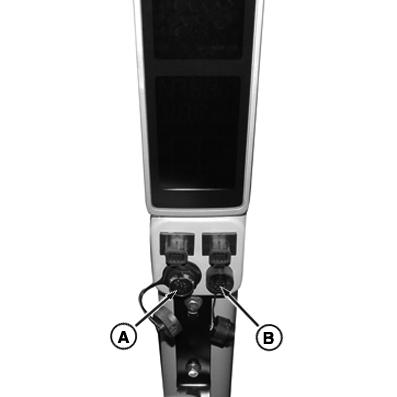

Front Right Corner Post

RXA0134921-UN-07MAR14

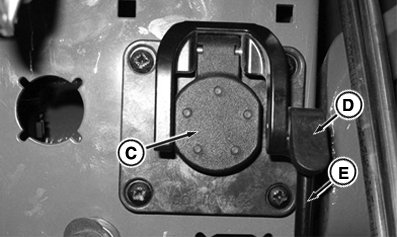

Implement Connector on Tractor Rear

RXA0142616-UN-16JUN14

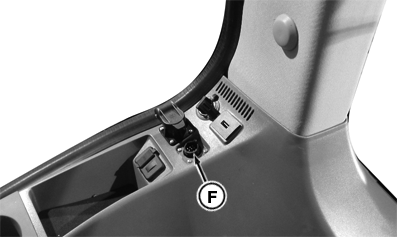

ISO 11783 Connector on Right-Hand Console

A - GreenStar™ Connector (Corner Post Left)

B - ISO 11786 Standard Connector (Corner Post Right)

C - Implement Connector (Tractor Rear)

D - Release

E - Handle

F - ISO 11783 Standard Connector (Right-Hand Console)

Tractor is ISOBUS ready and offer connections for implements conforming to both ISO 11786 and 11783 standards. ISO 11786 connector (B) provides radar or GPS speed signal. See Configuring Tractor for GPS/Radar in this section of this Operator’s Manual.

GreenStar™ corner post connector (A) allows any GreenStar™ display connection. See your John Deere™ dealer for compatible adapter harnesses.

IMPORTANT: Use ISO 11783 connector (F) with only ISO 11783 compliant components. Other uses could damage tractor electronic components.

ISOBUS ready preparation includes ISO 11783 connector, on right-hand console, and implement connector (C), on tractor rear, facilitating tractor/implement communications.

Lift the release (D) when disconnecting implement harness from connector on rear of tractor.
