Operate Turn Signals and High/Low Beam

TS951-UN-12APR90

RXA0135756-UN-01OCT13

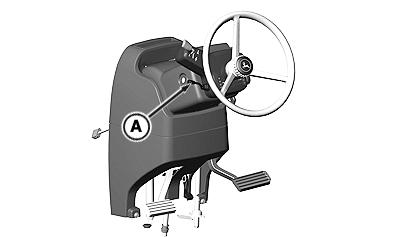

A - Turn Signal Lever

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from rear, especially in turns, and use turn signal lights.

Use headlights and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible, clean, and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere™ dealer.

NOTE: When turn signal is activated, a short audible chirping sound will be heard.

Turn Signals:

Push Turn Signal Lever (A) up for right turn, or pull down for left turn. Return lever to center position after completing turn.

High/Low Beam:

Push lever (A) forward to activate high beam headlights; high beam indicator comes on. Pull lever into center position to operate low beam. Pull lever toward you and release to momentarily activate high beams.

Dim Road Lights to low beam for oncoming vehicles.
