Hazard Lights and Extremity Warning Lights

RXA0086584-UN-09FEB06

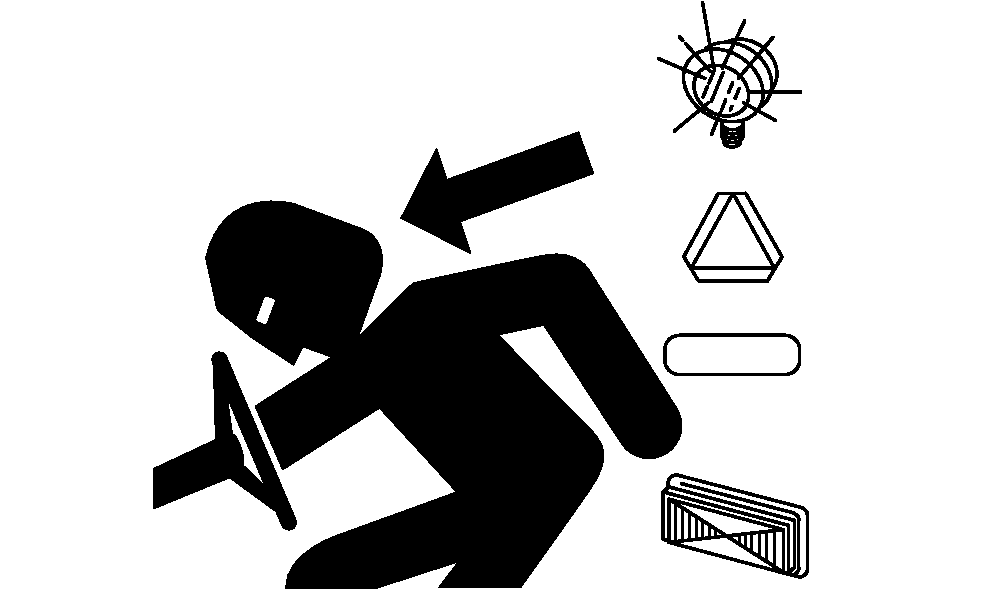

Use Safety Lights and Devices

RXA0142356-UN-10JUN14

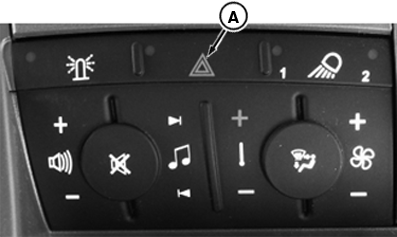

Hazard Light Button

RXA0153370-UN-22AUG16

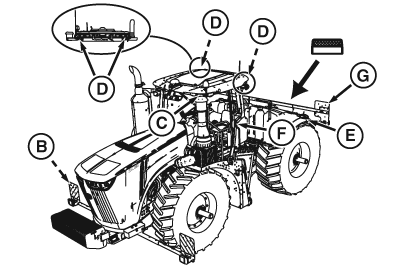

Cab Amber Lights

A - Hazard Light Button

B - Road (Low and High Beam)/Indicator/Clearance (Equipped with Amber Lens) Lights

C - Front Outer Roof Indictor Lights

D - Rear Outer Roof Indicator Lights

E - Rear Fender Indicator Lights

F - Extremity Warning Lights

G - Red Tail/Brake Light

CAUTION: To prevent possible personal injury, always operate flashing lights when traveling on highway or public roads, except where prohibited by law.

Extremity Warning lights (F) are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and transport warning lights when operating tractor on road or highway at night OR during the day. Extremity Warning Lights alert other vehicles of your extended width. Use flashing warning lights and turn signals day and night. Follow local laws and regulations for equipment lighting and marking.

Push Hazard Light button (A) to activate flashing amber hazard lights (B, C, D, E, F and G).

NOTE: Depending on region and installed equipment lights (B, C, D, E, F and G) may not all be available as indicator lights when Hazard Switch is activated.

IMPORTANT: To avoid damage, Extremity Warning lights may be retracted when parking tractor in storage building.

Extremity Warning lights operate with Hazard Light button “ON”.

Adjust Extremity Warning lights no more than 400 mm (16 in.) from widest point of tractor.
