Steering Column Light Controls

TS951-UN-12APR90

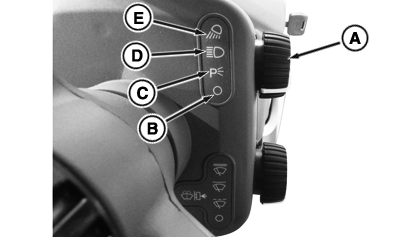

RXA0142298-UN-09JUN14

RXA0151525-UN-24FEB16

A - Selector Knob

B - OFF Position

C - Parking Lights Position

D - Road Lights Position

E - Field Lights Position

F - Turn Signal / Hi-Low Beam Lever

CAUTION: Avoid injury or death caused by collision with another vehicle. Follow local laws and regulations for equipment lighting and marking. Comply with all traffic regulations.

Use headlights and turn signals day and night. Dim road lights to low-beam for oncoming vehicles. Avoid using field lights on public roadways or highways which could temporarily blind or confuse other drivers. Frequently check for traffic from rear, especially in turns. Keep lighting and marking visible, clean and in good working order. Promptly replace or repair damaged or lost lighting devices. See your John Deere™ dealer.

Light Selector Knob

Control lights using light selector knob (A) on steering column. Display indicates selected lighting mode (B-E).

Turn Signal

Pull lever (F) up for right turn or down for left turn. Return lever to center position after completing turn.

A short audible chirping sound is heard when turn signal is activated.

High-Low Beam

Push lever (F) forward to activate high beam headlights; high beam indicator comes on. Dim lights to low beam for oncoming vehicles. Return lever to center position to operate low beam. Pull lever rearward and release to momentarily activate high beams.
