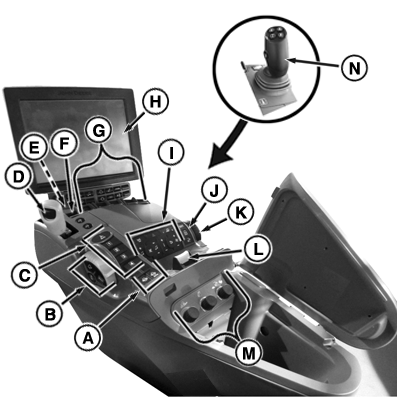

CommandARM™ with Generation 4 CommandCenter™ Display

RXA0138558-UN-23JAN14

CommandARM™

A - Differential Lock

B - Hand Throttle Control

C - iTEC™ & AutoTrac™ Resume

D - Transmission Shift Lever

E - SCV Control Lever Lock/ISB Lock Button

F - Hitch Lever

G - SCV Control Levers

H - Generation 4 CommandCenter™ Display

I - Climate, Radio, and Lighting Controls

J - Set/Lock/Resume Buttons

K - Depth Adjust Hitch Dial

L - PTO Lever

M - Load Depth/ Upper Limit/ Drop Rate Hitch Dials

N - Joystick (If Equipped)
