Gauges—Coolant Temperature, Diesel Exhaust Fluid (DEF) Level and Fuel Level

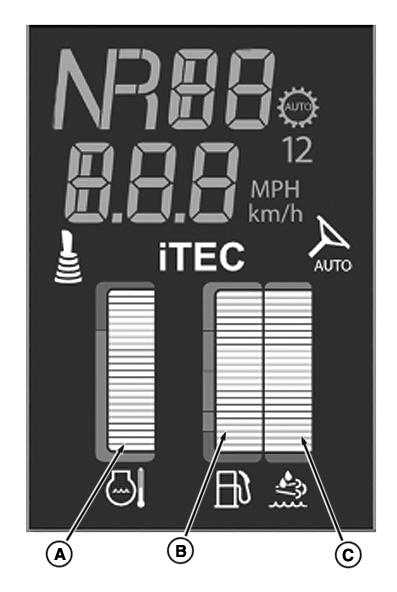

RXA0135829-UN-08OCT13

A - Coolant Temperature Gauge

B - Fuel Level Gauge

C - Diesel Exhaust Fluid (DEF) Gauge

A—Coolant Temperature Gauge: Shows engine coolant temperature between 40—120 °C (104—248 °F). All segments are off when coolant temperature is below 40 °C (104 °F). All segments are lit when temperature is 120 °C (248 °F) and above.

B—Fuel Level Gauge: Displays fuel level in tank. Each lighted segment represents 4% of fuel tank total capacity. When fuel tank is full, all segments are lit. When only bottom segment is lit, tank is nearly empty with approximately 39 L (10 gal) remaining.

NOTE: Diesel Exhaust Fluid (DEF) is only available on FT4/ Stage IV engine equipped tractors. DEF gauge will not show up if not equipped with those engines.

C—Diesel Exhaust Fluid (DEF) Gauge (If Equipped): Displays diesel exhaust fluid level. Each lighted segment represents 4% of DEF fluid tank total capacity. When DEF fluid tank is full, all segments are lit. When only bottom segment is lit, tank is nearly empty. DEF fluid tank should be filled whenever fuel tank is filled.
