Access Diagnostic Trouble Codes

NOTE: If problem is not resolved after cycling power to tractor, or following solution on CommandCenter™ page, see your John Deere™ dealer.

NOTE: Not all active DTC’s are displayed. Follow steps to retrieve stored DTC’s.

RXA0133360-UN-26JUL13

Menu → System Tab → Diagnostics Center Icon→ Trouble Codes Tab

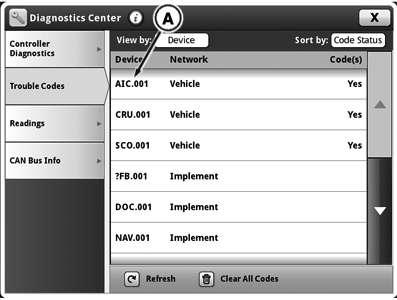

RXA0133359-UN-26JUL13

Trouble Codes Page

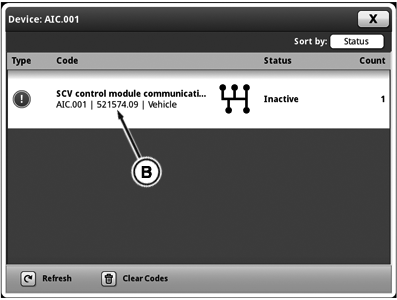

RXA0133361-UN-26JUL13

Diagnostic Trouble Code

A - Control Unit

B - Diagnostic Code

1. Select Menu.

2. Select System tab.

3. Diagnostics Center icon

4. Select Trouble Codes tab.

5. Select control unit (A) desired.

6. Select diagnostic code (B) for code display.
