Lubricate Vari-Cool™ Fan Drive—13.5 L Final Tier 4 and Stage IV Engine

1.

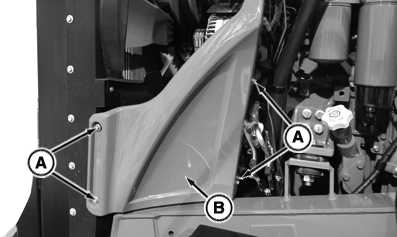

   RXA0142201-UN-06JUN14

   Side Panel

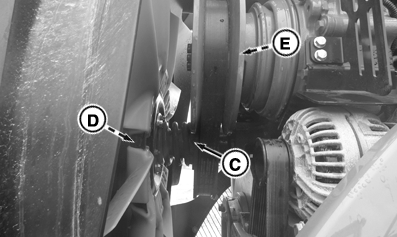

   RXA0148382-UN-15JUN15

   Fan Driver and Driven Shaft Lubrication Fittings

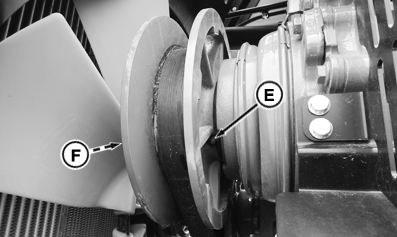

   RXA0148375-UN-15JUN15

   Fan Driver Pulley Lubrication Fitting

   A - Cap Screws

   B - Side Panel

   C - Fan Shaft Fittings

   D - Driven Vent Opening

   E - Fan Pulley Fitting

   F - Driver Vent Opening

   Raise engine hood.

---




2. Remove cap screws (A) and remove engine side panel (B).

3. IMPORTANT: Grease only one driver and driven shaft fittings. The fitting on opposite side provides fan balance and service position convenience.

   If more than 50 pumps of AN102562 Corn Head grease required, contact your John Deere™ dealer to replace internal seals and inspect shaft splines.

   13.5 L engine only. Pump AN102562 Corn Head grease into shaft lubrication fitting (C) until grease is visible coming from driven shaft vent (D).

4. Grease fan driver pulley lubrication fitting (E).

5. Reinstall diverter panel and tighten cap screws.

   Item	Measurement	Specification
   Diverter Panel Cap Screws
   Cap Screw	Torque	20 N·m (15 lb·ft)

6. Reinstall finger guard and tighten cap screws.

7. Close and secure hood.
